17.1.3 Server interior

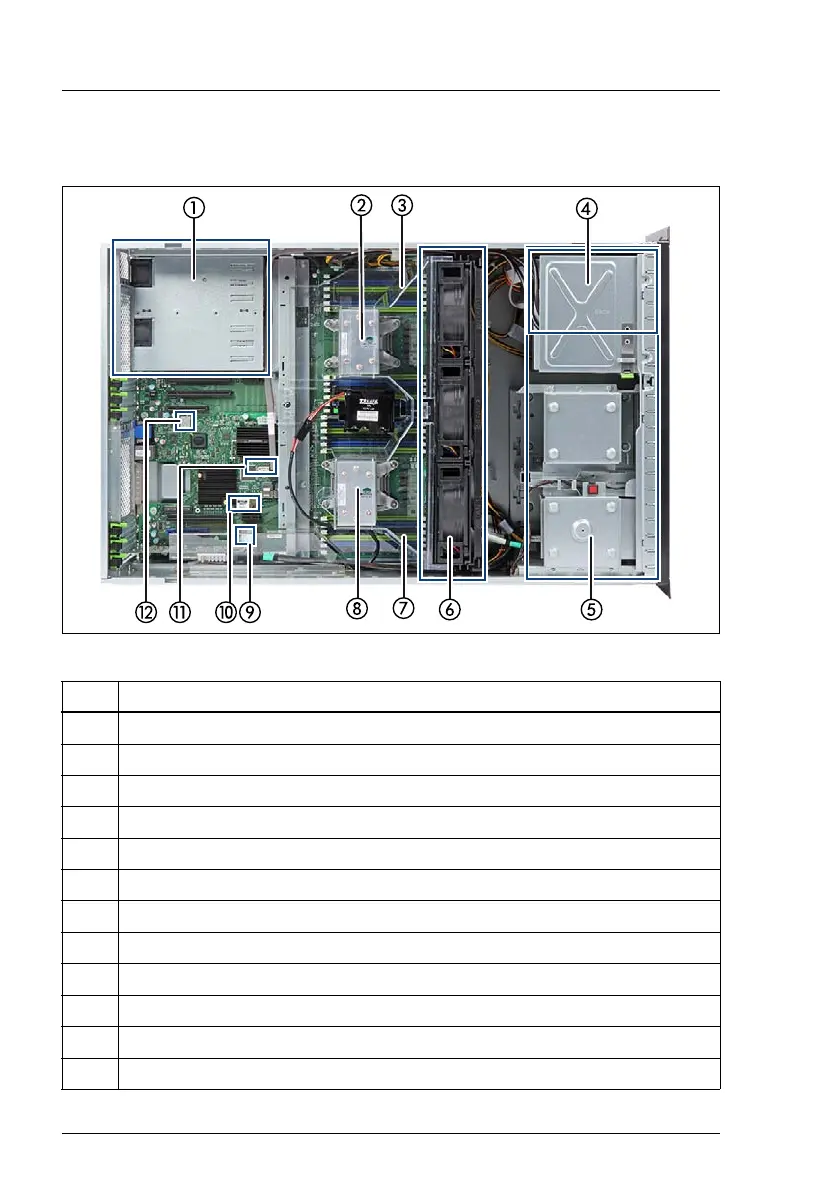

Figure 421: PRIMERGY TX2560 M2/ RX2560 M2 interior (example: 2.5-inch HDDs)
Pos. Component
1 Power supply units
2 CPU 2/ heat sink
3 Memory slots CPU2
4 Front panel module bay
5 HDD/SSD bay
6 Fans
7 Memory slots CPU1
8 CPU 1/ heat sink
9UFM
10 TPM
11 SATA DOM
12 iRMC microSD card
