Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)

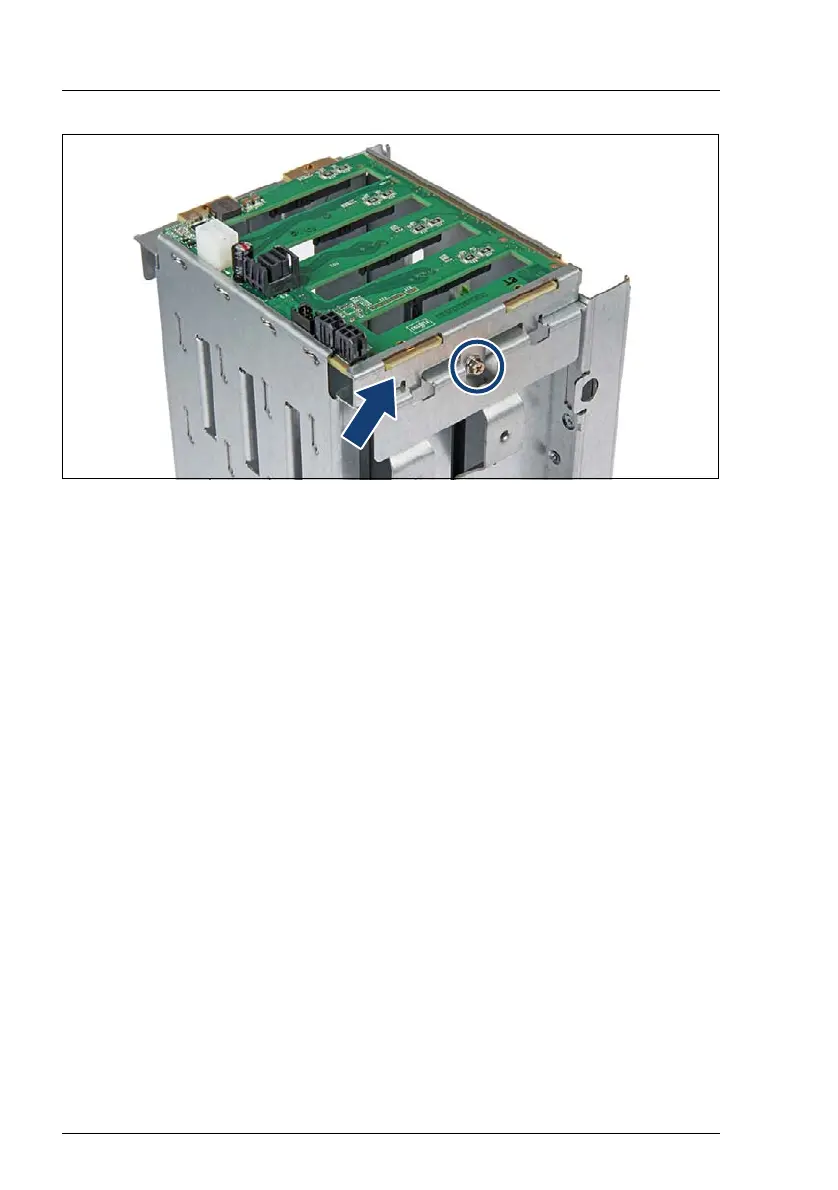

Figure 168: Installing the HDD backplane (B)
Ê
Place the bracket (see arrow) and fasten it with one screw (see circle).
Ê
Fasten the HDD backplane with two screws (see figure 164).
Ê
Install the 4x 3.5-inch HDD extension box as described in section "Installing
the 4x 3.5-inch HDD extension box" on page 247.
7.4.7.4 Concluding steps
Ê
"Installing the system fan holder" on page 94
Ê
"Installing the system air duct" on page 92
Ê
"Reassembling" on page 74
Ê
Reinstall all HDDs into their original slots in the HDD extension box as
described in section "Installing 3.5-inch HDD modules" on page 218.
Ê
"Connecting the power cord" on page 87
Ê
"Switching on the server" on page 90
