Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)
Ê
Ensure that the upper edge of the SAS backplane is flush with the HDD bay
divider wall (see dashed line).
7.3.13.5 Installing the 8x 3.5-inch HDD front panel

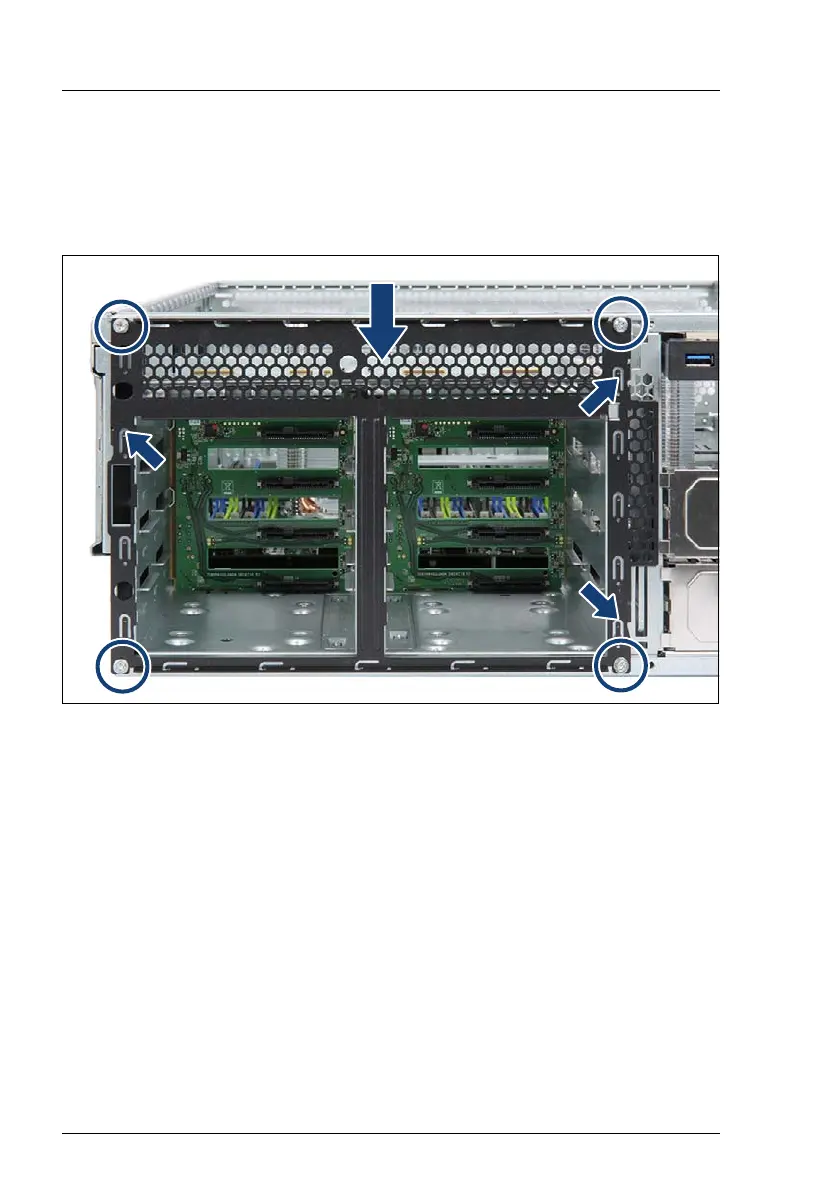

Figure 149: Securing the 8x 3.5-inch HDD front panel
Ê
Fit the three hooks on the HDD front panel into the slots in the server front
(see small arrows).
Ê
Firmly press down on the HDD front panel until its upper edge is flush with
the chassis (see arrow).
Ê
Secure the HDD front panel to the server front with four M3 x 4.5 mm screws
(see circles).
7.3.13.6 Installing the 3.5-inch HDD bay top cover
Ê
Install the HDD bay top cover as described in section "Installing the 3.5-inch
HDD bay top cover" on page 228).
