70
Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Basic hardware procedures
4.4.2.2 Removing the side cover

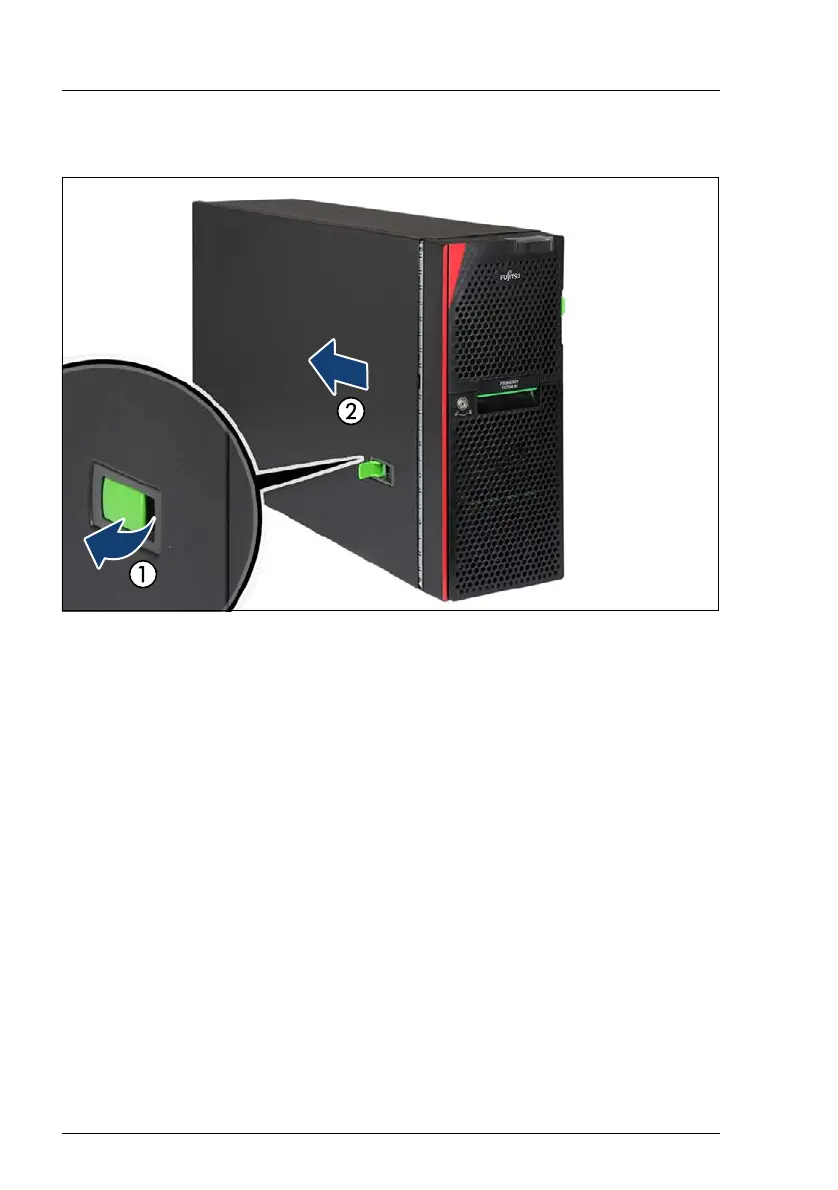

Figure 15: Removing the side cover (tower server)
Ê
Open the locking lever (1). This will slide the side cover back disengaging
the locking mechanism.
Ê
Remove the side cover (2).
