TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
317
Expansion cards and backup units
9.3.8.2 Removing the defective riser card

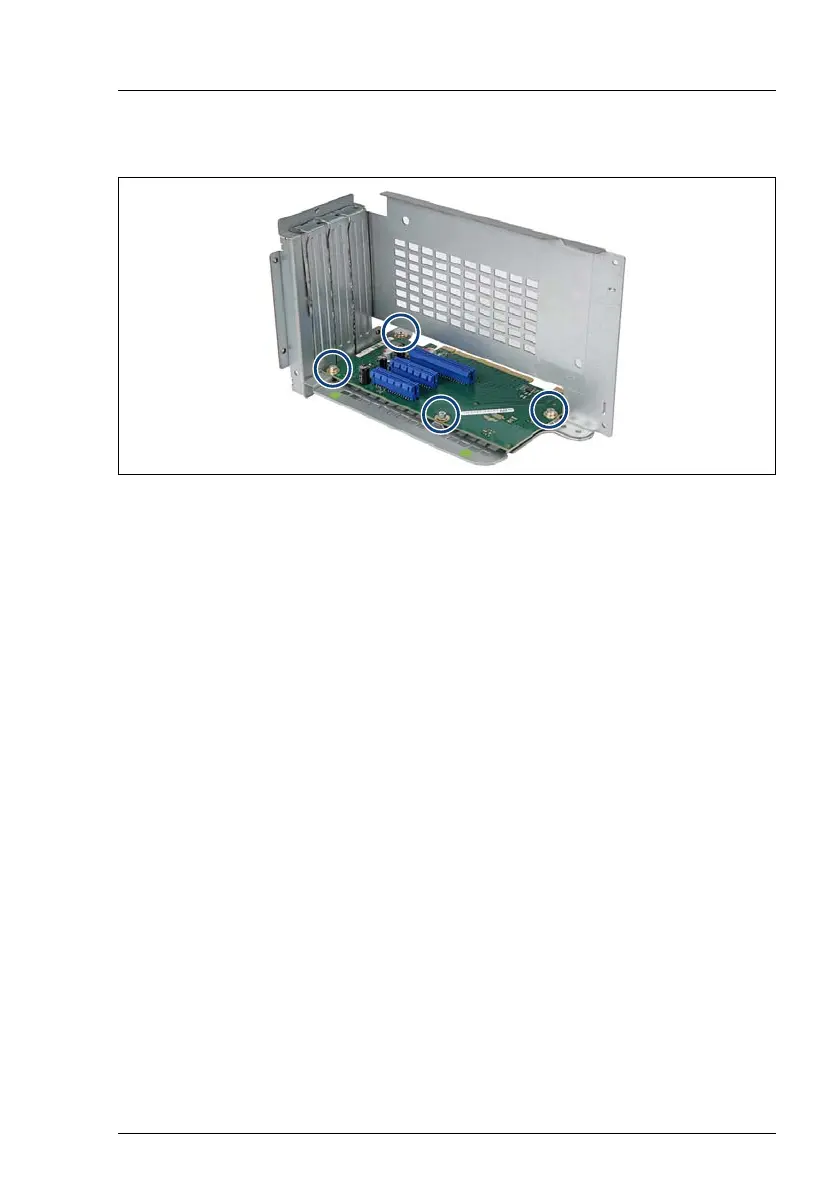

Figure 222: Removing a riser card
Ê
Remove the four screws (see circles).
Ê
Take the riser card out of the riser card holder.
9.3.8.3 Installing a new riser card
Ê
Install the riser card in the riser card holder.
Ê
Fasten the riser card with the four screws (see circles in figure 222).
9.3.8.4 Concluding steps
Ê
Install all expansion cards in the riser module as described in section
"Installing expansion cards in riser modules" on page 308.
Ê
Install the corresponding riser module as described in section "Installing a
riser module" on page 95.
Ê
"Reassembling" on page 74
Ê
"Connecting the power cord" on page 87
Ê
"Enabling replaced components in the system BIOS" on page 131
Ê
If applicable, "Updating RAID controller firmware" on page 122
Ê
"Enabling SVOM boot watchdog functionality" on page 130
Ê
"Resuming BitLocker functionality" on page 136
