TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
415

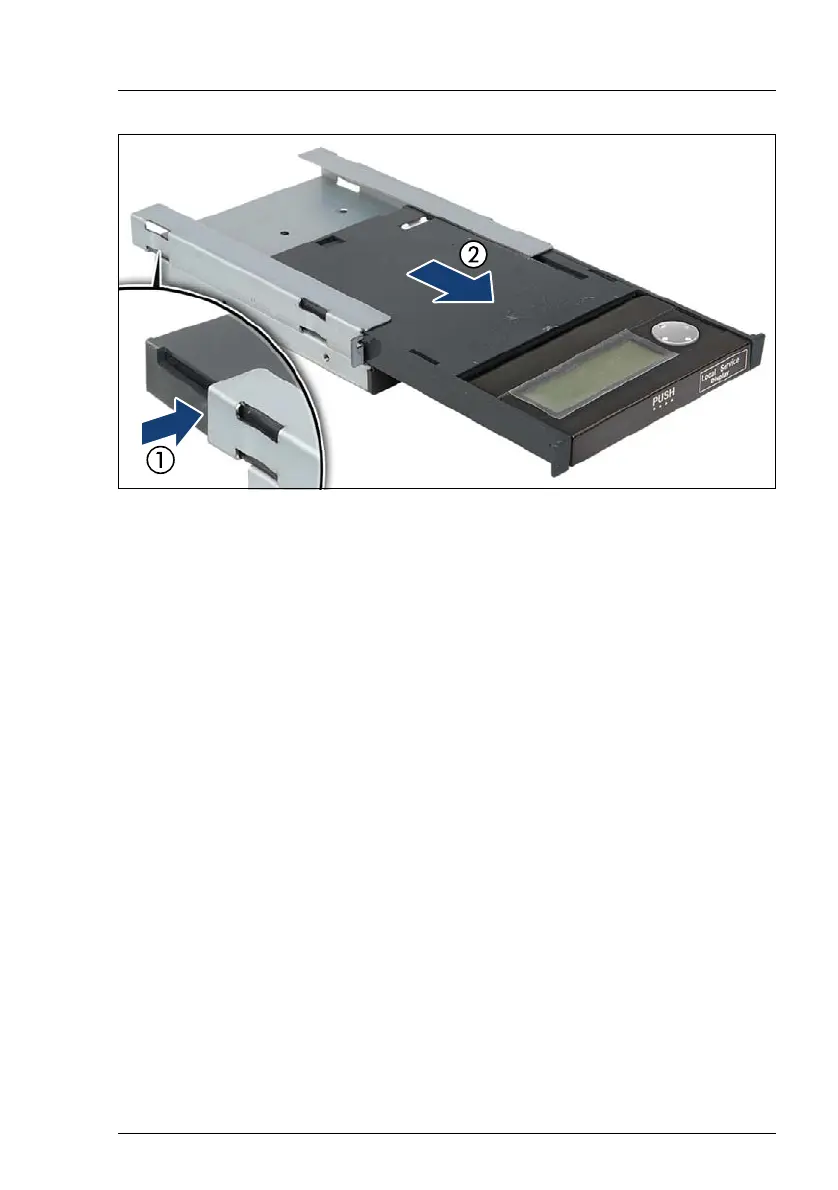

Figure 310: Removing the LSD module from the 3.5-inch installation frame
Ê
Press in on the locking latch (see close-up) to disengage the LSD module
(1).
Ê
Pull the LSD module out of the 3.5-inch installation frame (2).
Ê
If the removed LSD module is not to be replaced by a new module, reinstall
the LSD dummy cover.
12.5.2.5 Installing the Multibay box
Ê
Install the Multibay box as described in section "Installing the Multibay box"
on page 409.
12.5.2.6 Concluding steps
Ê
"Installing the system fan holder" on page 94
Ê
"Installing the system air duct" on page 92
Ê
"Reassembling" on page 74
Ê
"Connecting the power cord" on page 87
Ê
"Switching on the server" on page 90
