Hard disk drive (HDD) / solid state drive (SSD)
7.2.14.2 Removing a SAS backplane and the SAS expander holder
I
The SAS cables are very strong. For the next steps the SAS expander
holder is removed to get better access.
Removing the SAS expander holder

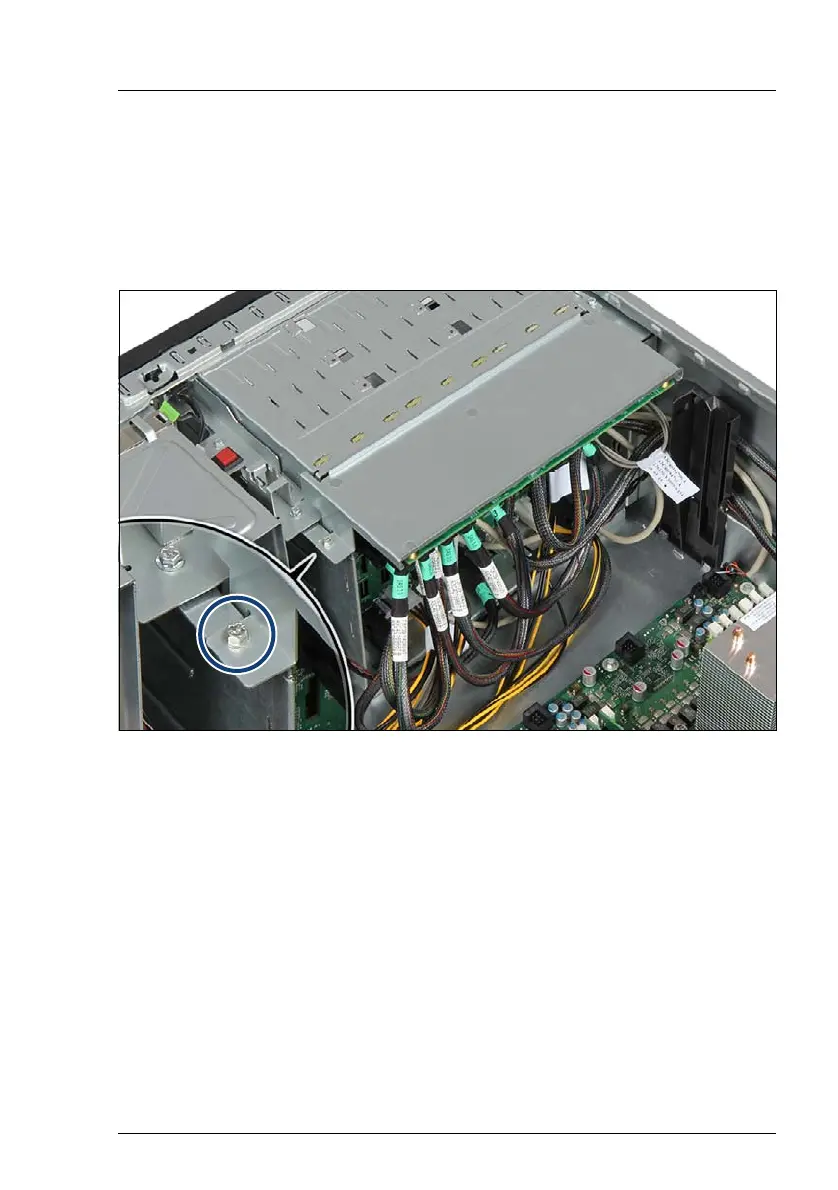

Figure 104: Removing the SAS expander holder (A)
Ê
Remove the screw (see circle).
