4.10 Handling riser modules
4.10.1 Installing a riser module

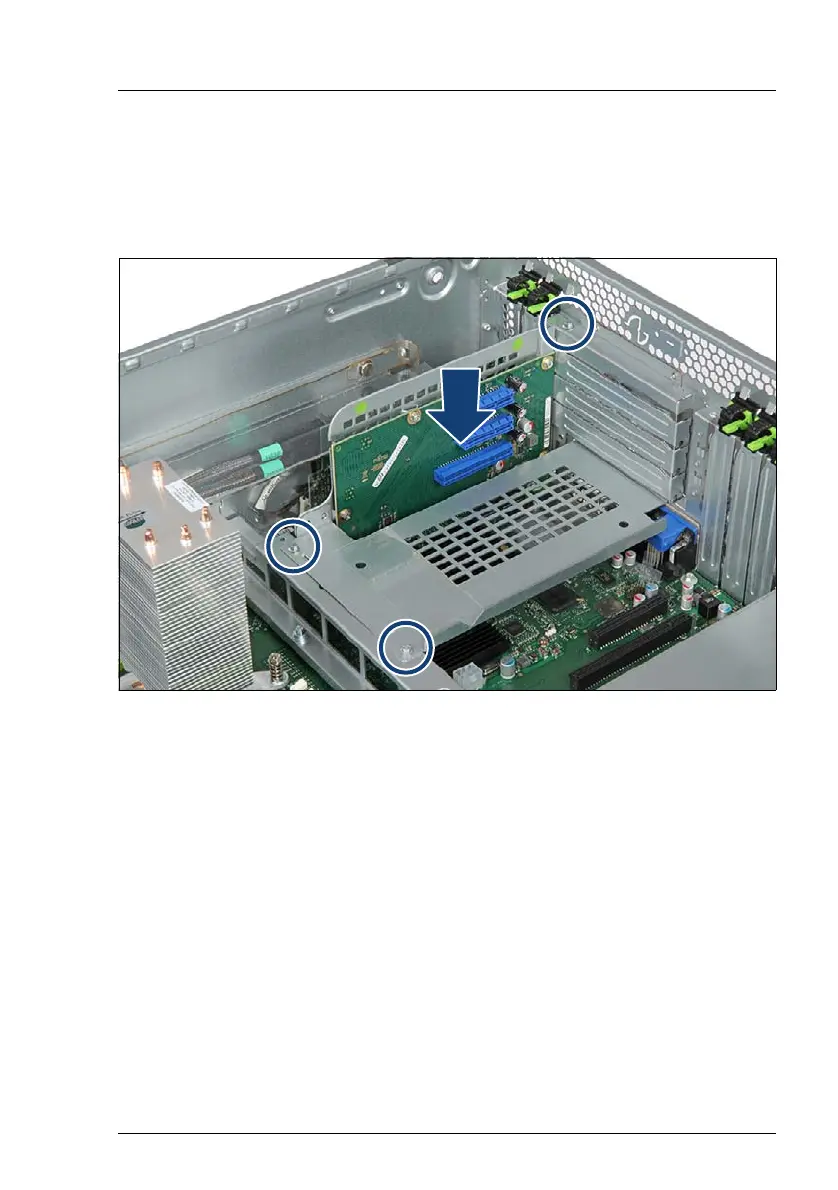

Figure 46: Installing the riser module - example riser module 1
Ê Insert the riser module.
Ê Carefully push down the riser module until the contacts of the riser card are
fully seated in the PCIe socket.
Ê Fasten the riser module with three screws inside the chassis (see circles).
I Fasten the screws firmly.
