Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
12.5.1.3 Installing the LSD module into the Multibay box

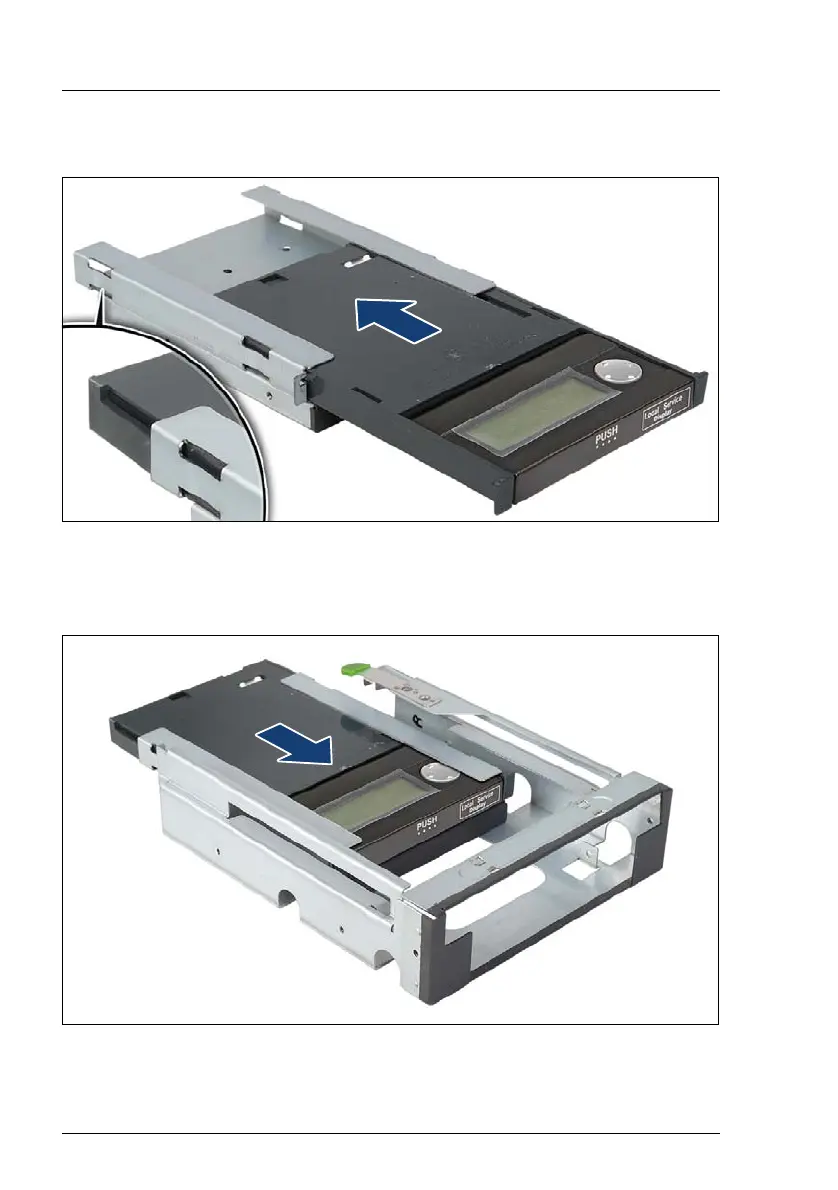

Figure 300: Inserting the LSD module into the 3.5-inch installation frame
Ê
From the front, slide the LSD module into the 3.5-inch installation frame until
the locking latch (see close-up) engages.
Figure 301: Installing the 3.5-inch installation frame in the Multibay box (A)
Ê
From the rear, slide the 3.5-inch installation frame into the Multibay box.
