Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)
7.2.10.3 Installing a 2.5-inch HDD/SSD module

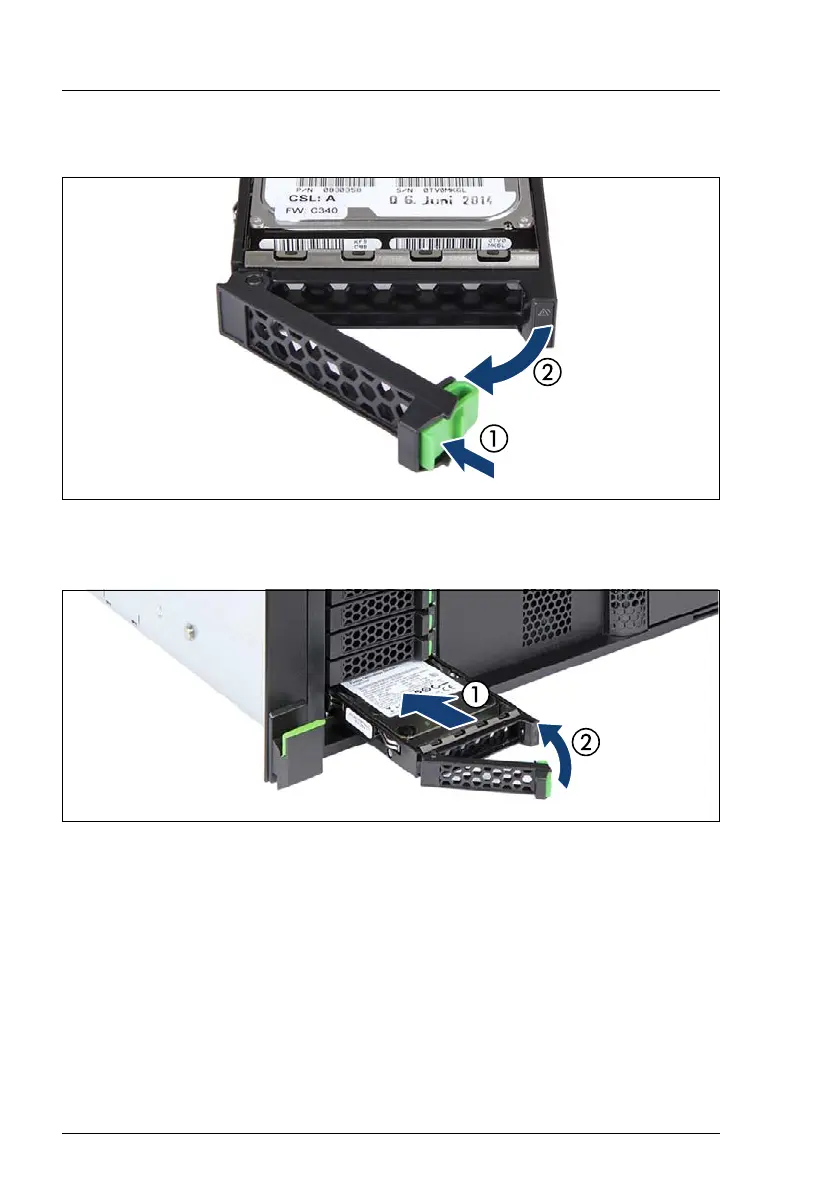

Figure 88: Opening the 2.5-inch HDD/SSD module locking lever
Ê
Pinch the green locking clip (1) and open the locking lever (2).
Figure 89: Installing the 2.5-inch HDD/SSD module
Ê
Insert the HDD/SSD module into a drive bay and carefully push back as far
as it will go (1).
Ê
Close the locking lever to lock the HDD in place (2).
7.2.10.4 Concluding steps
Ê
When working on a tower server, close the HDD bay cover as described in
section "Installing accessible drive and HDD bay covers" on page 83.
Ê
"Performing a RAID array rebuild" on page 137
