TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
255
Hard disk drive (HDD) / solid state drive (SSD)

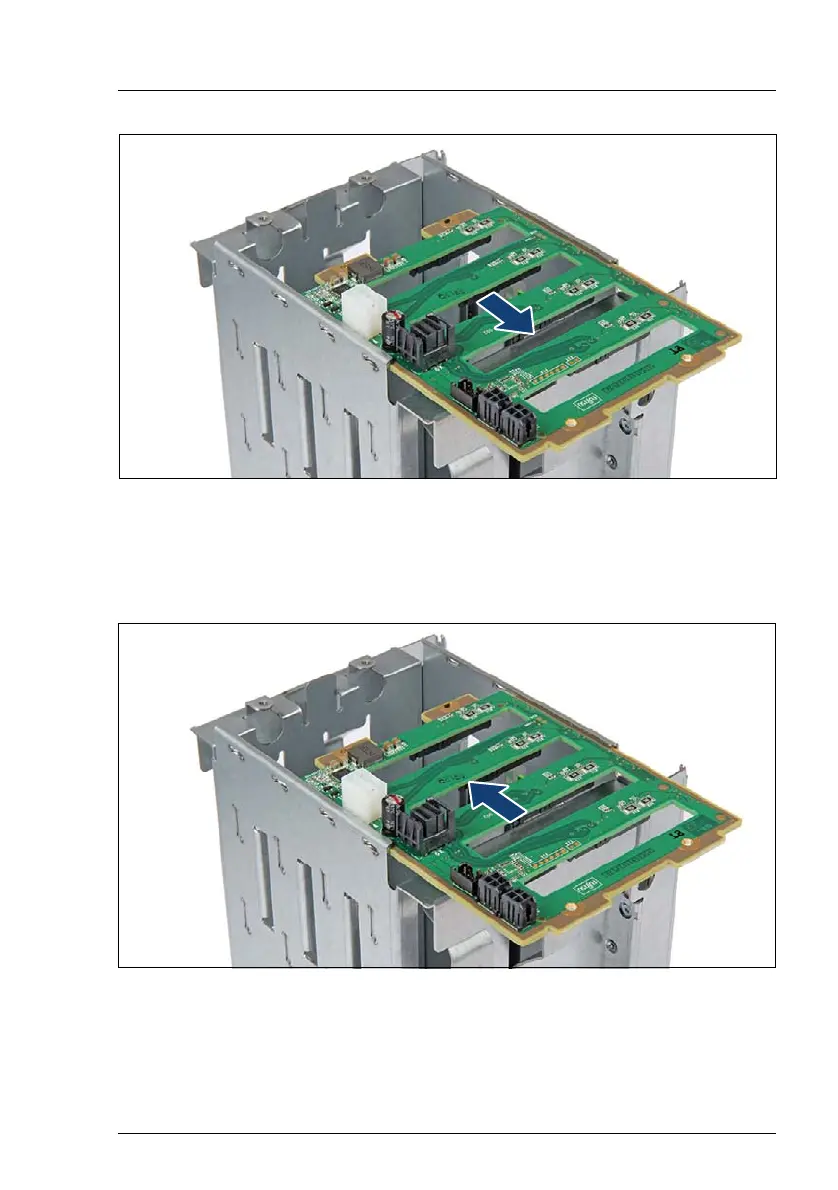

Figure 166: Removing the HDD backplane (C)
Ê
Pull out the HDD backplane in the direction of the arrow.
7.4.7.3 Installing the new HDD backplane
Figure 167: Installing the HDD backplane (A)
Ê
Fit the HDD backplane into the guides.
Ê
Push the HDD backplane in the direction of the arrow.
