154
Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)
7.1 Basic information
The HDDs or SSDs which can be ordered for your server are supplied already
mounted in an installation frame so that defective drives can be replaced and
new drives can be added during operation. The HDD or SSD and the installation
frame together make up the HDD module or SSD module.
I
For information on RAID controllers controlling the HDD/SSD modules
see chapter "Expansion cards and backup units" on page 289.
I
Please refer to section "2.5-inch HDD/SSD/PCIe SSD configurations" on
page 155 and section "3.5-inch HDD configurations" on page 206 for a
complete overview of the mounting sequence.
I
In the following sections the figures are shown for the RX2560 M2.
The only difference to a TX2560 M2 in horizontal position: the accessible
drive cage is turned around clockwise for 90 degrees.

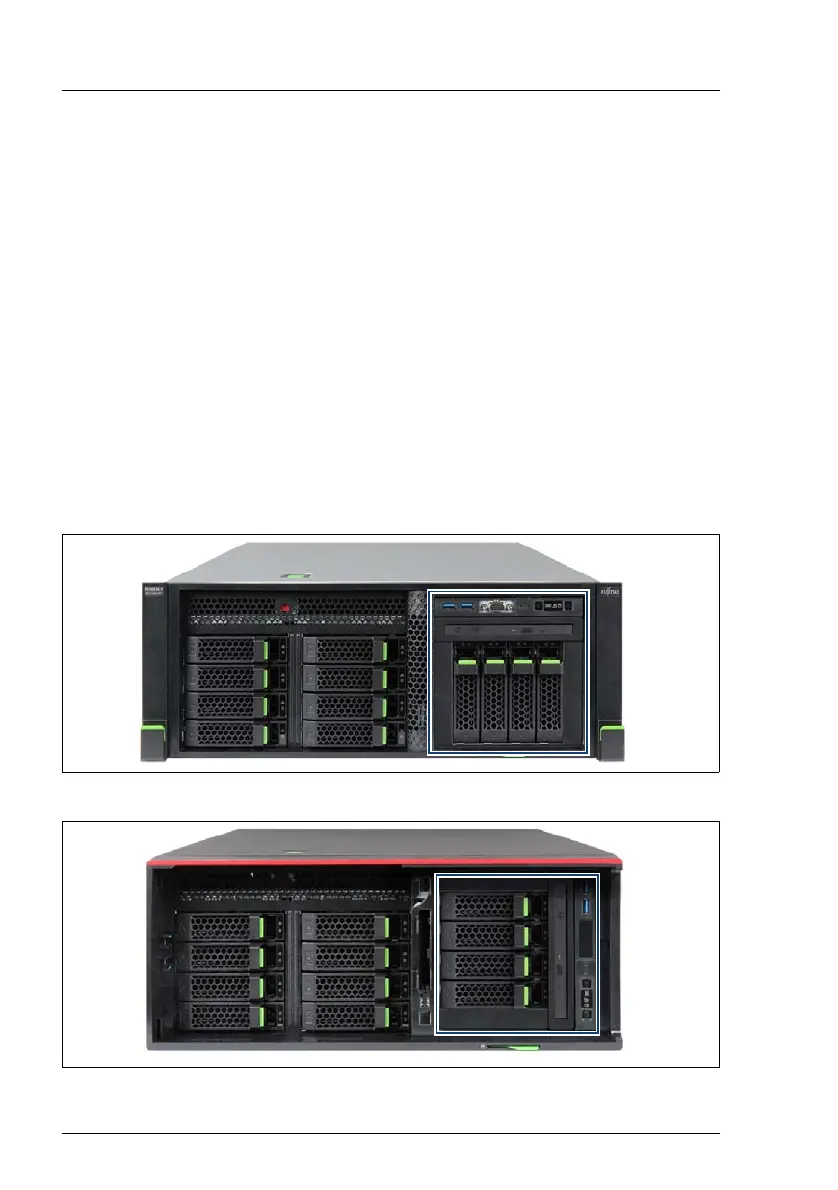

Figure 68: Example RX2560 M2
Figure 69: Example TX2560 M2 in horizontal position
