Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Expansion cards and backup units

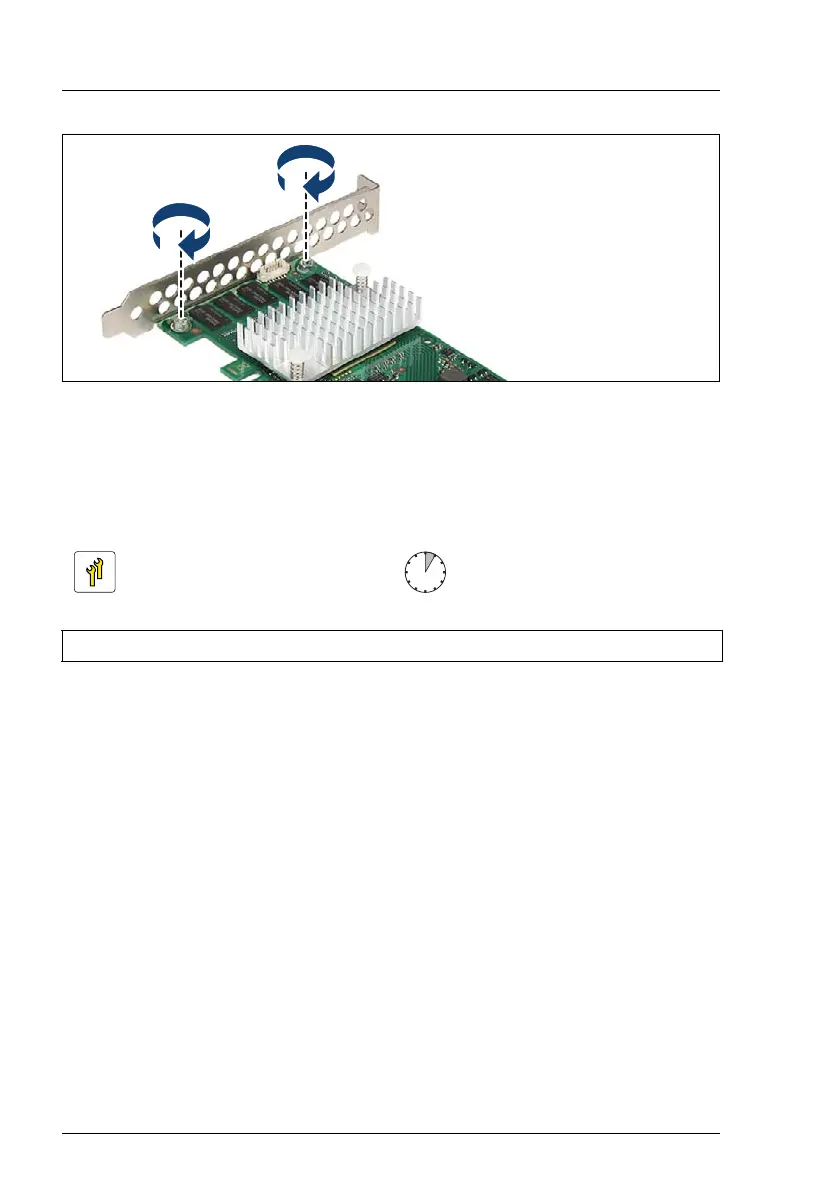

Figure 203: Mounting the PCI slot bracket (B)
Ê
Secure the slot bracket to the controller with two M3 x 3.5 mm screws.
9.2.2 Removing a slot bracket
Removing the slot bracket
Ê
Remove the two screws.
Ê
Remove the controller from the mounting tabs on the slot bracket.
Upgrade and Repair Unit
(URU)
Average task duration:
5 minutes
Tools:
Phillips PH2 / (+) No. 2 screw driver
