13.2.1.2 Removing the front VGA dummy cover

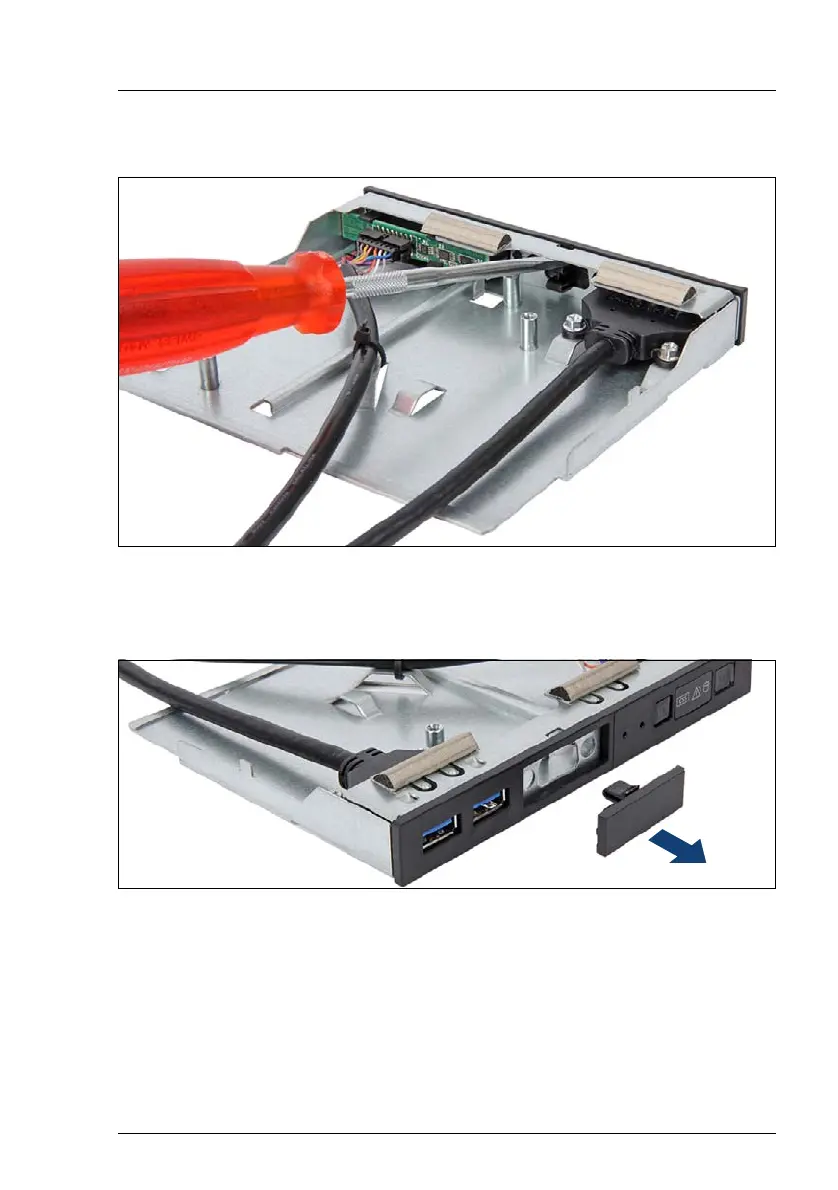

Figure 329: Removing the front VGA dummy cover (A)
Ê
Use a slotted screwdriver to press down on the locking latch of the front VGA
dummy cover.
Figure 330: Removing the front VGA dummy cover (B)
Ê
Remove the front VGA dummy cover.
V CAUTION!
Keep the dummy cover for future use. If the front VGA connector is
removed and not immediately replaced by a new one, a front VGA
dummy cover must be replaced in the slot to comply with applicable
EMC regulations and satisfy cooling requirements.
