TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
409

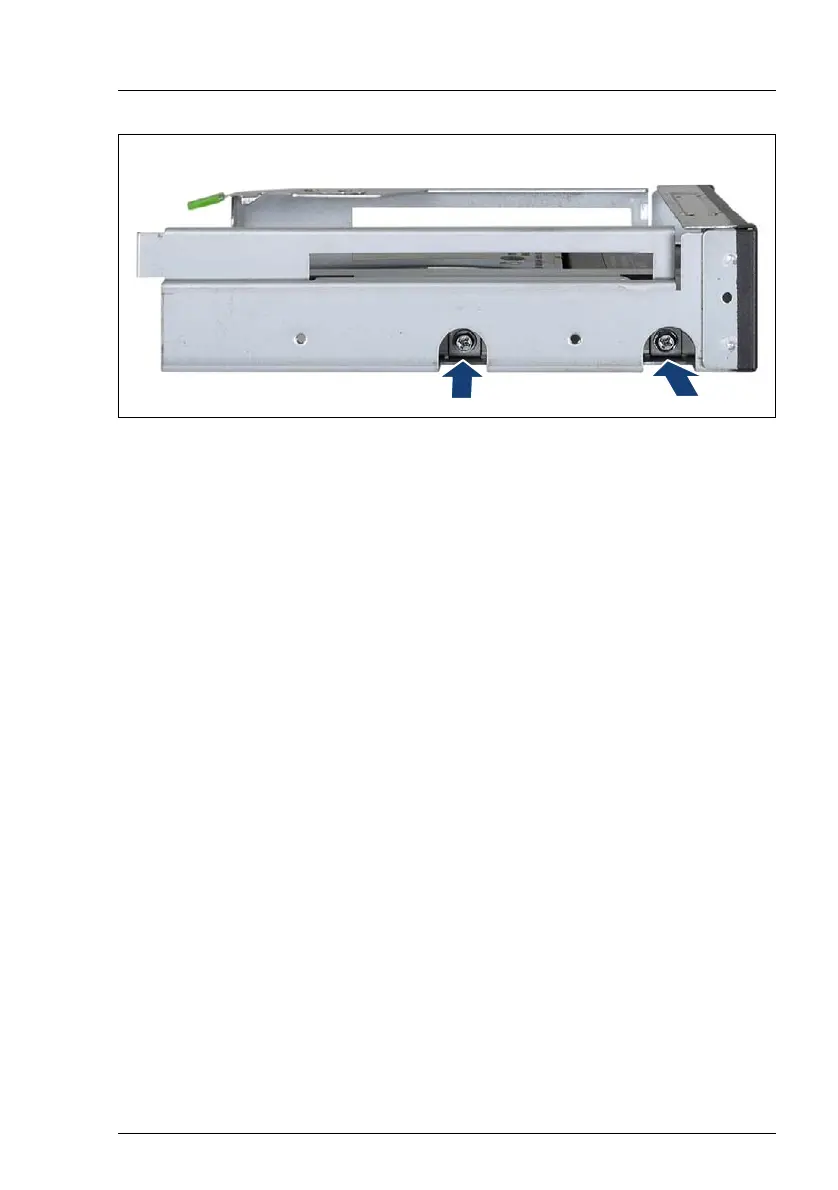

Figure 302: Installing the 3.5-inch installation frame in the Multibay box (B)
Ê
Secure the installation frame in the Multibay box with two screws (M3 x 6
mm) on either side.
Ê
Before inserting the Multibay box into the chassis, connect the LSD cable to
the LSD module.
12.5.1.4 Removing accessible drive dummy covers
Ê
If applicable, remove the accessible drive filler cover from installation bay 1
as described in section "Accessible drive filler covers" on page 104.
Ê
If applicable, remove the accessible drive cover from installation bay 1 as
described in section "Accessible drive covers" on page 106.
12.5.1.5 Installing the Multibay box
Ê
Ensure that the four mounting brackets in installation bay 1 have not been
bent out (see figure 291).
Ê
Disengage the accessible drive locking bar as described in section "Opening
the accessible drive locking bar" on page 100.
