Basic hardware procedures

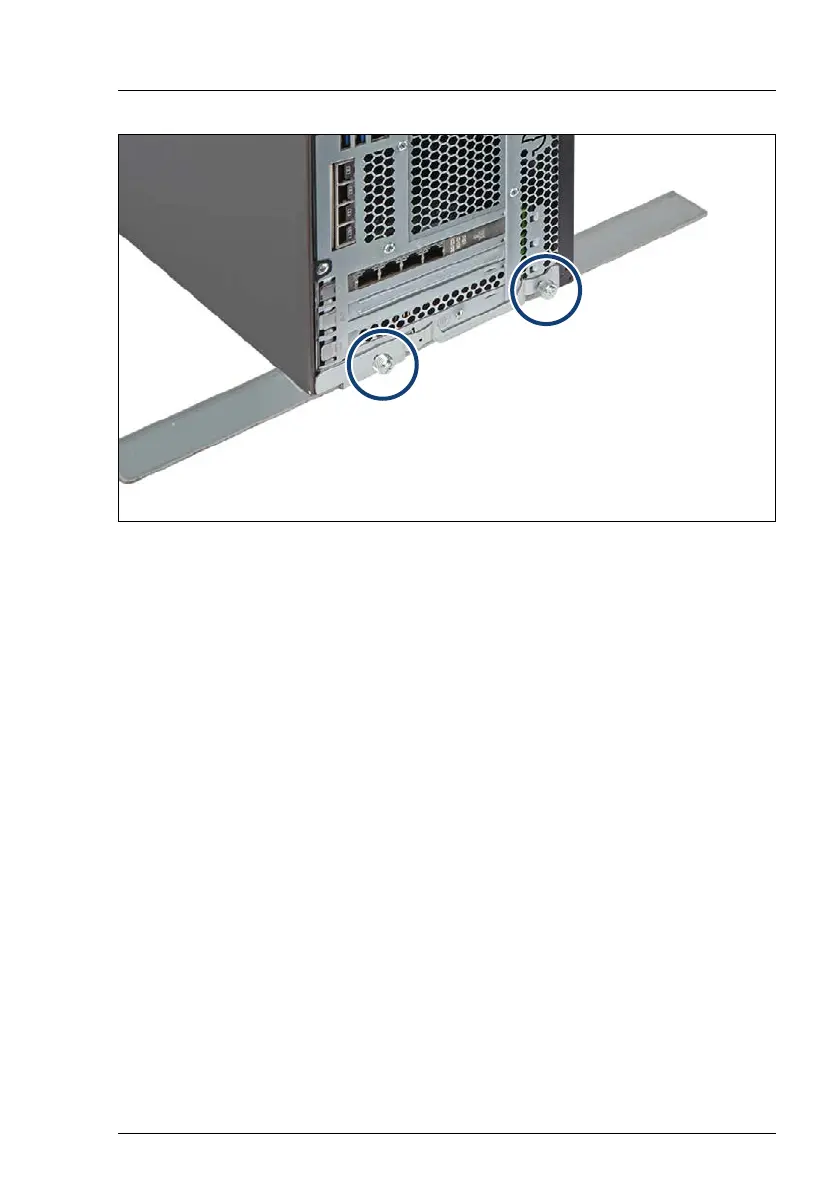

Figure 60: Installing the anti-tilt bracket (B)
Ê Secure the anti-tilt bracket on the rear of the server with two knurled thumb
screws.
4.12.2 Removing the anti-tilt bracket
Ê Loosen the two knurled thumb screws on the anti-tilt bracket (see figure 60).
Ê Remove the anti-tilt bracket from the rear of the server.
