TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
377
11.3.1 Preliminary steps
Ê
"Suspending BitLocker functionality" on page 111
Ê
"Disabling SVOM boot watchdog functionality" on page 112
Ê
"Shutting down the server" on page 58
Ê
"Disconnecting the power cord" on page 59
Ê
"Getting access to the component" on page 61
Ê
"Removing the system air duct" on page 91
11.3.2 Removing a CPU
I
This description applies to the following procedures:
– Removing CPU 2 from a 2 CPU configuration
– Removing CPUs from a defective system board
Ê
Remove the desired heat sink as described in section "Removing heat
sinks" on page 387.

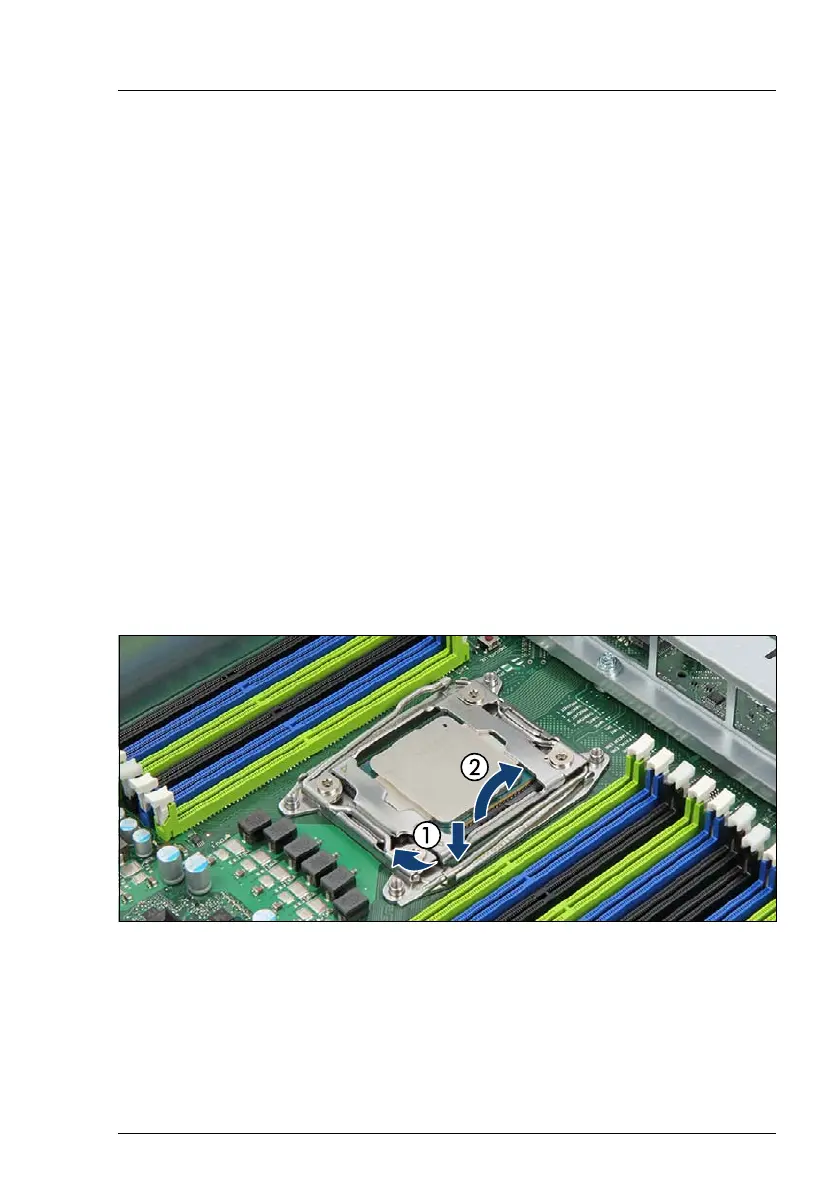

Figure 273: Opening socket release lever (marked Open 1st)
Ê
Unlatch the socket release lever marked
Open 1st
by pushing it down and
towards the socket (1).
Ê
The socket release lever will slightly lift up (2).
