Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2

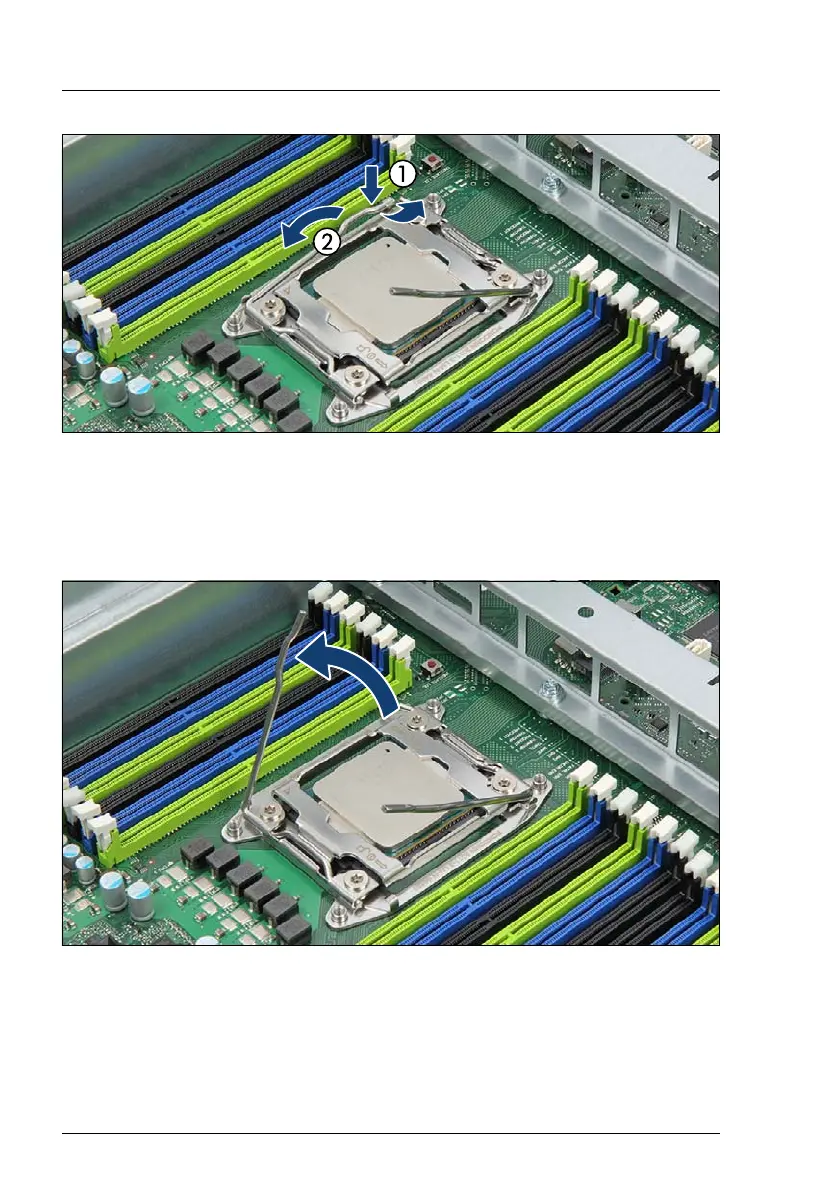

Figure 274: Opening socket release lever (marked Close 1st)
Ê
Unlatch the socket release lever marked
Close 1st
by pushing it down and
towards the socket (1).
Ê
The socket release lever will slightly lift up (2).
Figure 275: Releasing the load plate
Ê
Fully fold back the socket release lever marked
Close 1st
in order to release
the load plate.
Ê
Return the socket release lever to its original position.
