TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
379

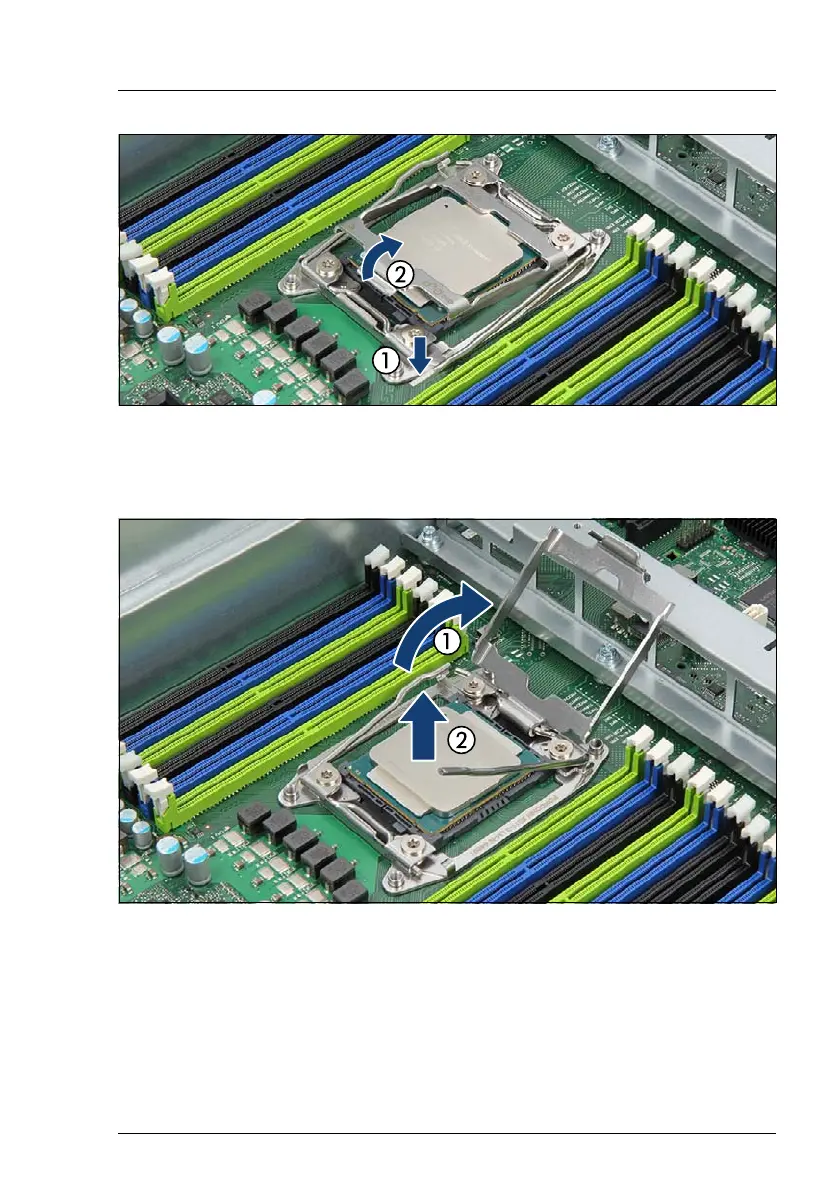

Figure 276: Opening the load plate
Ê
Push down on the socket release lever marked
Open 1st
(1) to lift the load
plate away from the socket (2).
Figure 277: Removing the CPU
Ê
Fully open the load plate (1). Make sure that the load plate is in the fully open
position.
V CAUTION!
Be careful not to touch or bend the spring contacts on the CPU
socket!
