Front panel and external connectors
13.1.3 Removing cables from the front panel module

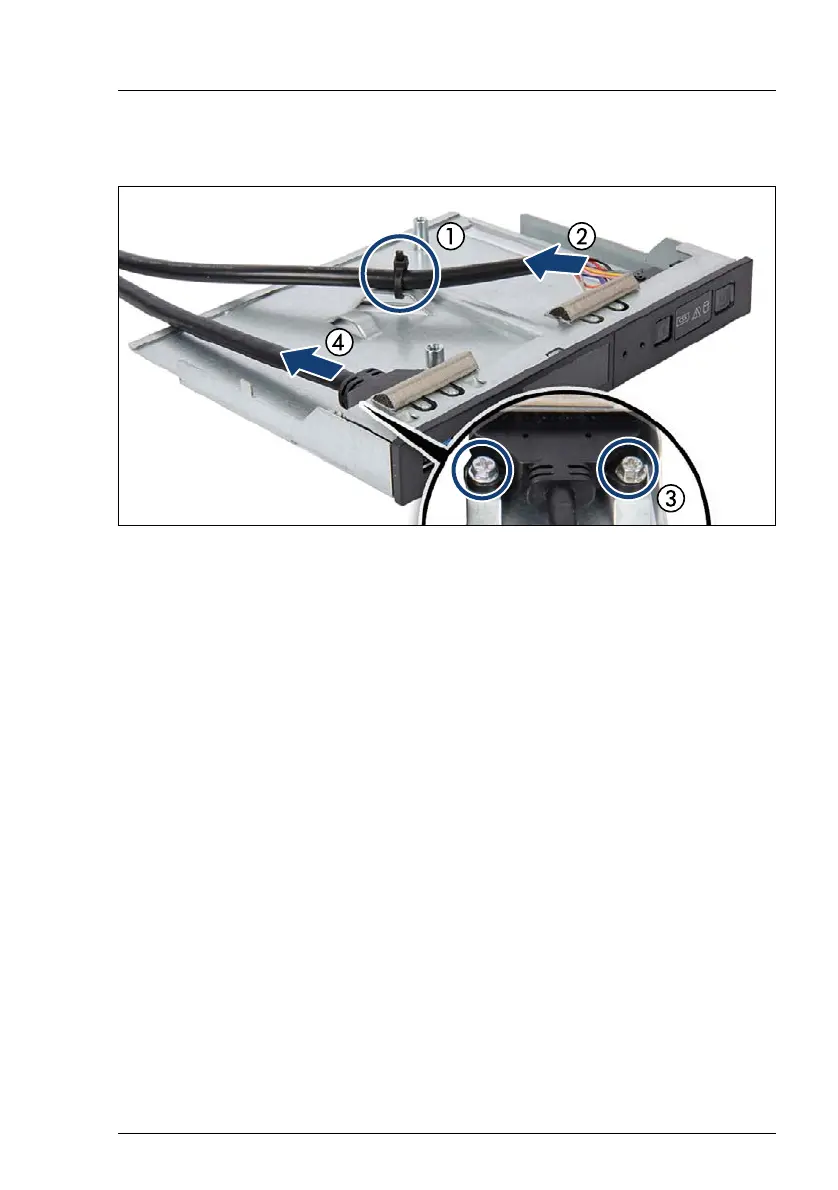

Figure 325: Removing the front panel cables
Ê
Cut through the cable tie (1) and remove the front panel cable (2).
Ê
Remove the two screws (3) and remove the front USB cable (4).
Ê
If the front VGA connector has been installed in the front panel module,
remove the cable as described in section "Removing the front VGA
connector" on page 446.
13.1.4 Connecting cables to the front panel module
Ê
If the front VGA connector is to be installed in the new front panel module,
install the front VGA cable as described in section "Installing the front VGA
connector" on page 442.
Ê
Connect the front panel cable to the new front panel module and secure it to
the lug with a new cable tie (see figure 325).
Ê
Connect the front USB cable to the new front panel module and secure it
with two screws (see figure 325).
