TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
75
Basic hardware procedures

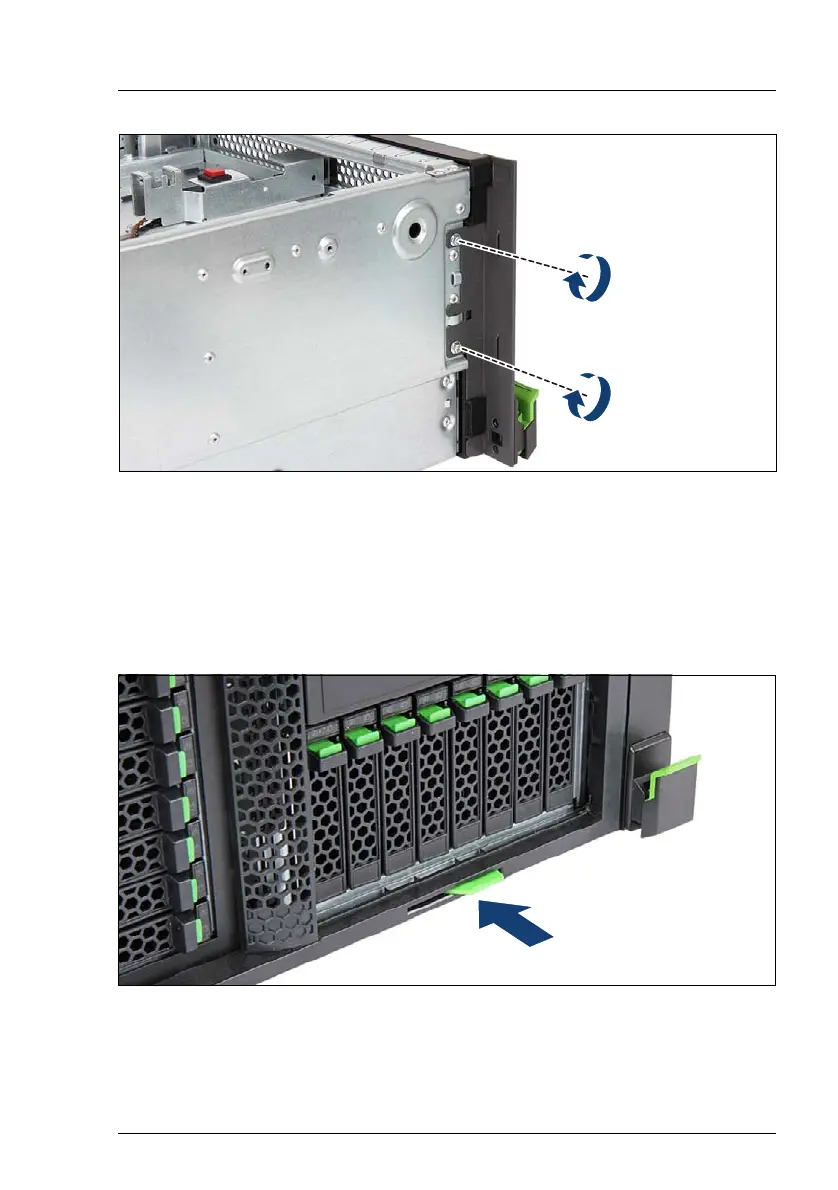

Figure 22: Installing the rack mounting frame (B)
Ê
Ensure that the rack mounting brackets properly engage on both sides of the
chassis as shown.
Ê
Secure the rack front cover with two M3 x 4.5 mm screws on either side.
4.5.1.2 Installing the ID card
Figure 23: Installing the ID card (rack server)
Ê
Insert and slide the ID card into its slot until it locks in place as shown.
