TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
547
17.1.2 Server rear

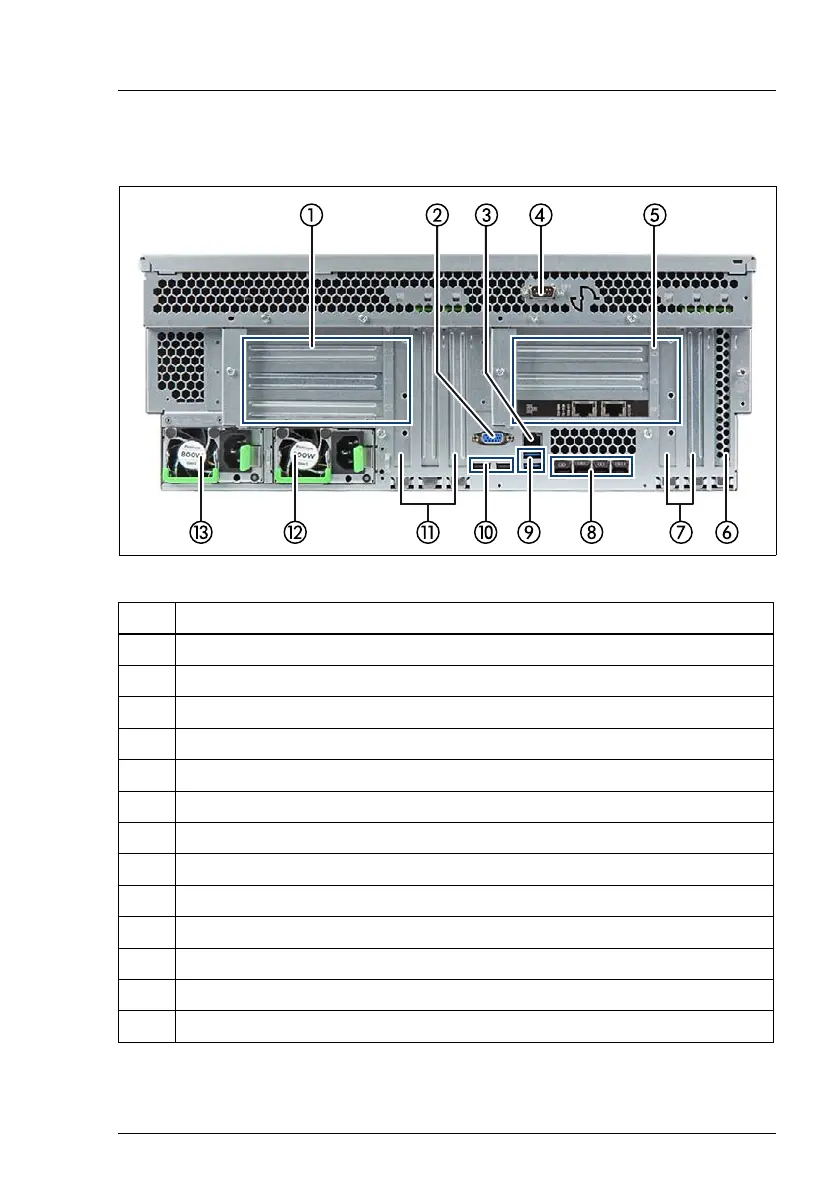

Figure 420: Server rear - example RX2560 M2
Pos. Component
1 Installation location for riser module 2 (optional)
2 Video connector
3 Management LAN connector
4 COM1 connector (optional)
5 Installation location for riser module 1(optional)
6 RAID controller (Slot 1)
7 Optional expansion card (Slot 2-3)
8 DynamicLoM connectors
9 USB3.0
10 USB2.0
11 Optional expansion card (Slot 7-9)
12 Power supply unit 2
13 Power supply unit 1
