Fujitsu PRIMERGY TX2560 M2 Upgrade And Maintenance Manual

TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual 183
Hard disk drive (HDD) / solid state drive (SSD)
7.2.13.3 Removing a 2.5-inch HDD/SSD SAS backplane
I The 2.5-inch HDD front panel does not need to be removed in order to
replace a 2.5-inch HDD/SSD SAS backplane. In the figures, the front
panel has been removed for illustration purposes only.

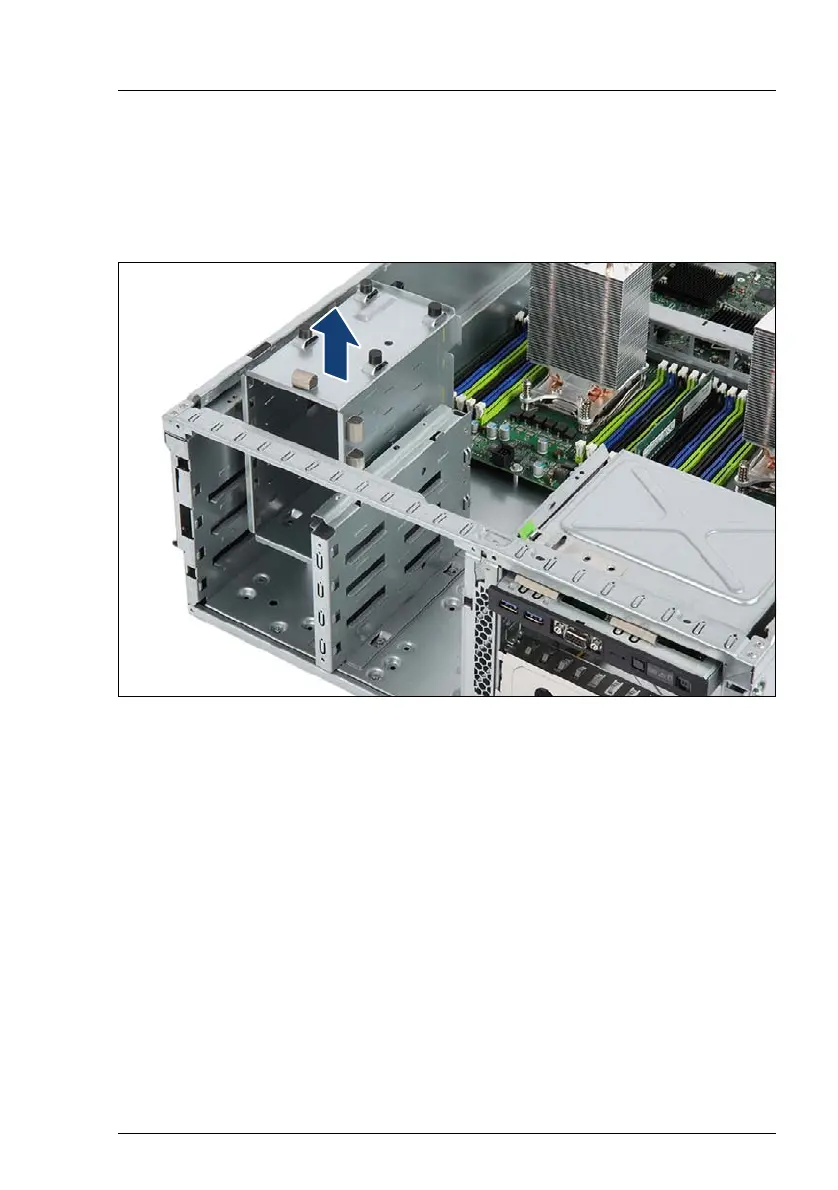

Figure 94: Removing the 2.5-inch HDD cage
Ê Lift the 2.5-inch HDD cage containing the defective HDD backplane out of
the HDD bay.
