184
Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)

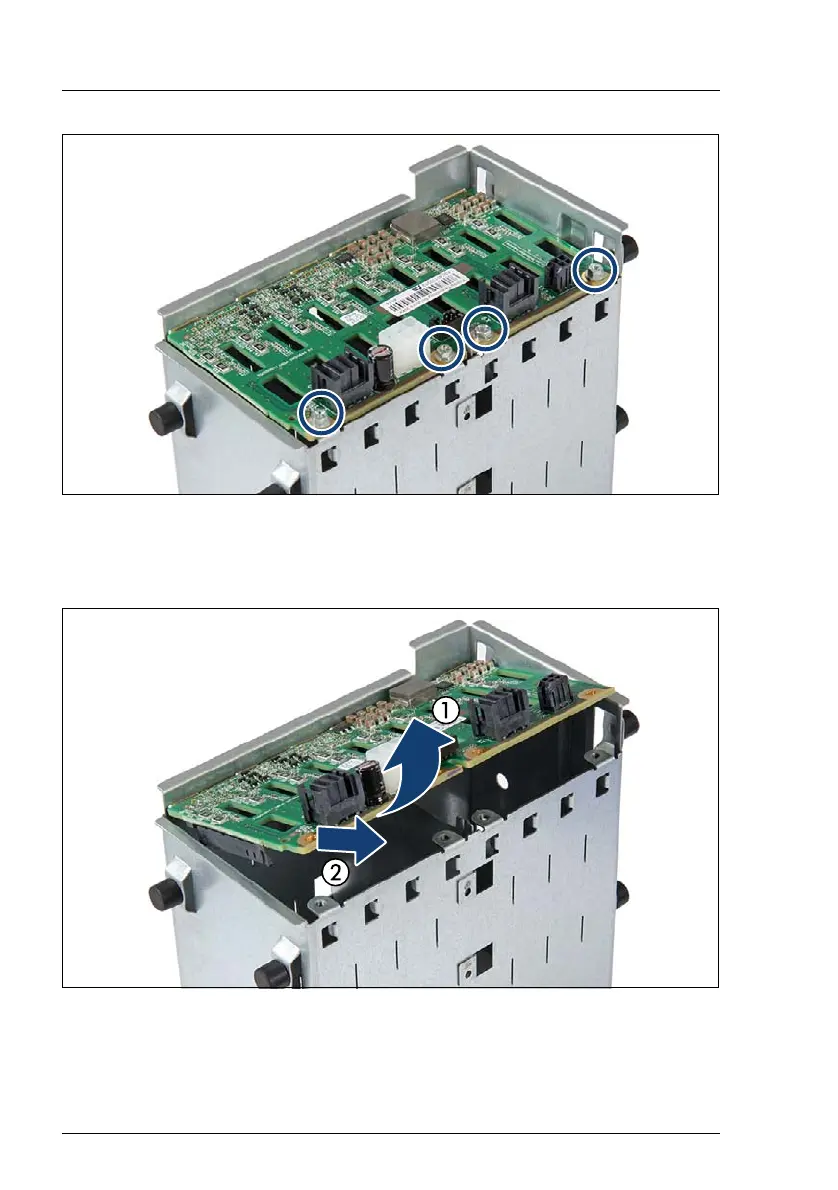

Figure 95: Removing the defective 2.5-inch HDD/SSD SAS backplane (A)
Ê
Remove four screws from the defective 2.5-inch HDD SAS backplane (see
circles).
Figure 96: Removing the defective 2.5-inch HDD/SSD SAS backplane (B)
Ê
Fold up the defective 2.5-inch HDD SAS backplane (1) and at a slight angle,
remove it from the recesses in the HDD cage (2).
