204 Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)
7.2.16.5 Installing the 2.5-inch HDD bay top cover
Ê
Install the 2.5-inch HDD bay top cover as described in section "Installing the
2.5-inch HDD bay top cover" on page 187.
7.2.16.6 Installing the 16x 2.5-inch HDD front panel

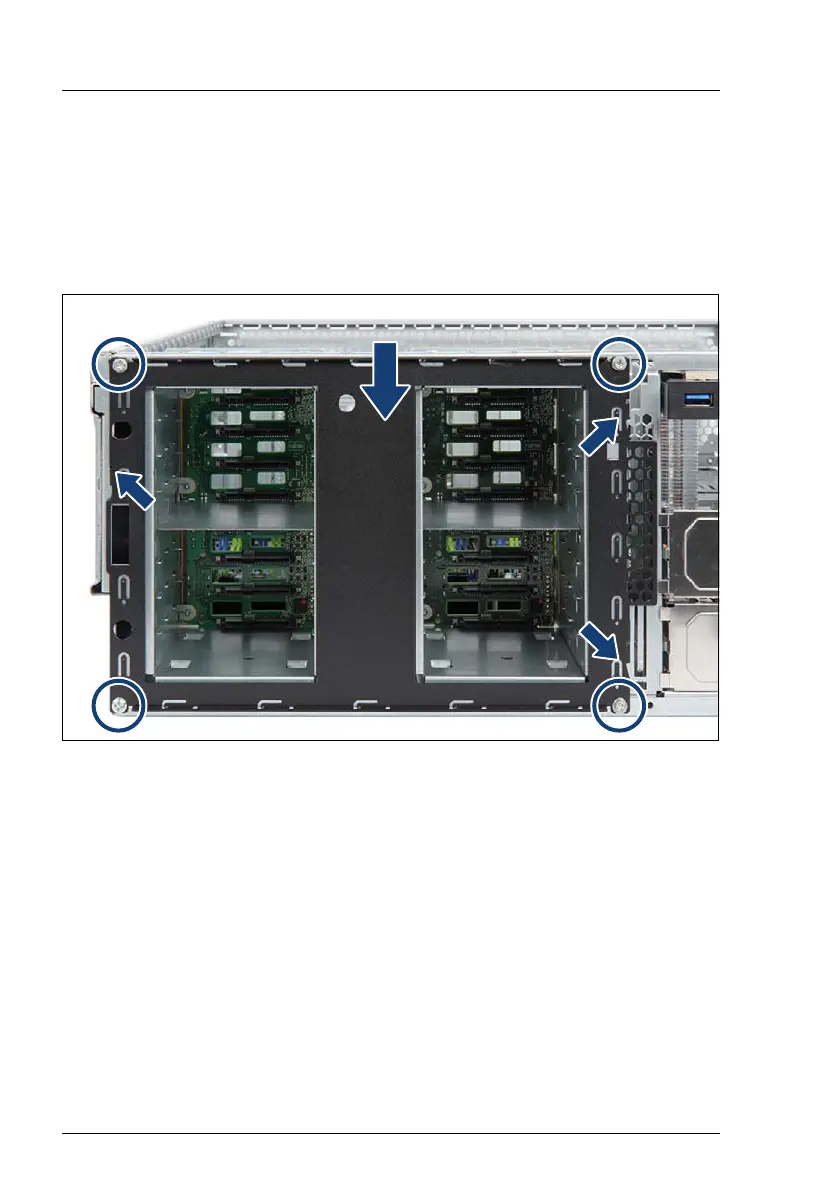

Figure 118: Securing the 16x 2.5-inch HDD front panel
Ê Fit the three hooks on the 2.5-inch HDD front panel into the slots in the
server front (see small arrows).
Ê Firmly press down on the HDD front panel until its upper edge is flush with
the chassis (see arrow).
Ê Secure the HDD front panel to the server front with four M3 x 4.5 mm screws
(see circles).
7.2.16.7 Installing the expander board
Ê
Install the expander board as described in section "Installing the SAS
expander board" on page 272.
