TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
429

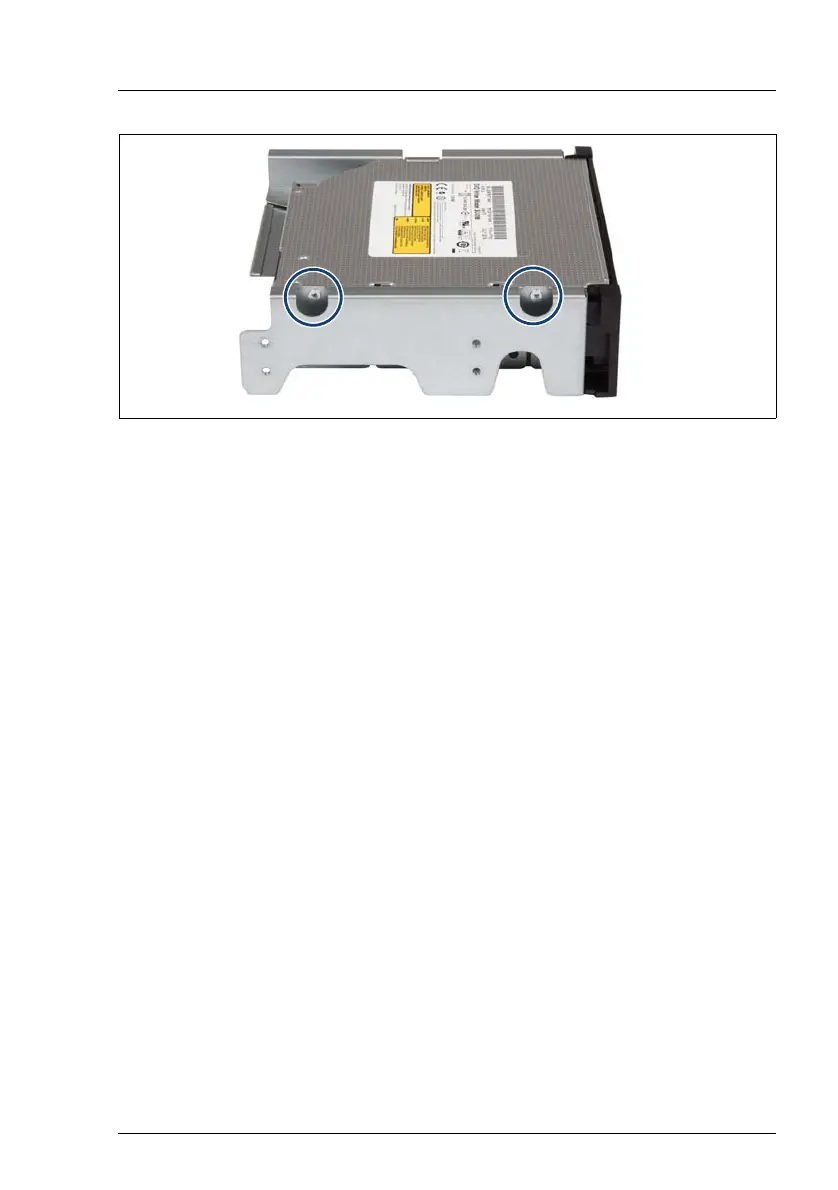

Figure 320: Installing the ultraslim ODD in the ultraslim ODD adapter (B)
Ê
Secure the ultraslim ODD to the ultraslim ODD adapter with two screws (see
circles).
Ê
Connect the power cable C23 and the SATA cable C11 to the ultraslim ODD
(see figure 315).
12.7.1.3 Installing the ultraslim ODD adapter
Ê
Install the ultraslim ODD adapter as described in section "Installing an
accessible drive" on page 398.
Ê
Connect the power cable C23 from the ultraslim ODD to a free connector of
the power cable C8 (see section "Cabling plans" on page 512).
Ê
If applicable, connect the SATA cable C11 from the ultraslim ODD to the
system board connector SATA 5. The routing is the same as for standard
ODD (see figure 294 and section "Cabling plans" on page 512).
12.7.1.4 Concluding steps
Ê
"Installing a riser module" on page 95 (if applicable)
Ê
"Installing the system fan holder" on page 94
Ê
"Installing the system air duct" on page 92
Ê
"Reassembling" on page 74
Ê
"Connecting the power cord" on page 87
Ê
"Switching on the server" on page 90
