Accessible drives

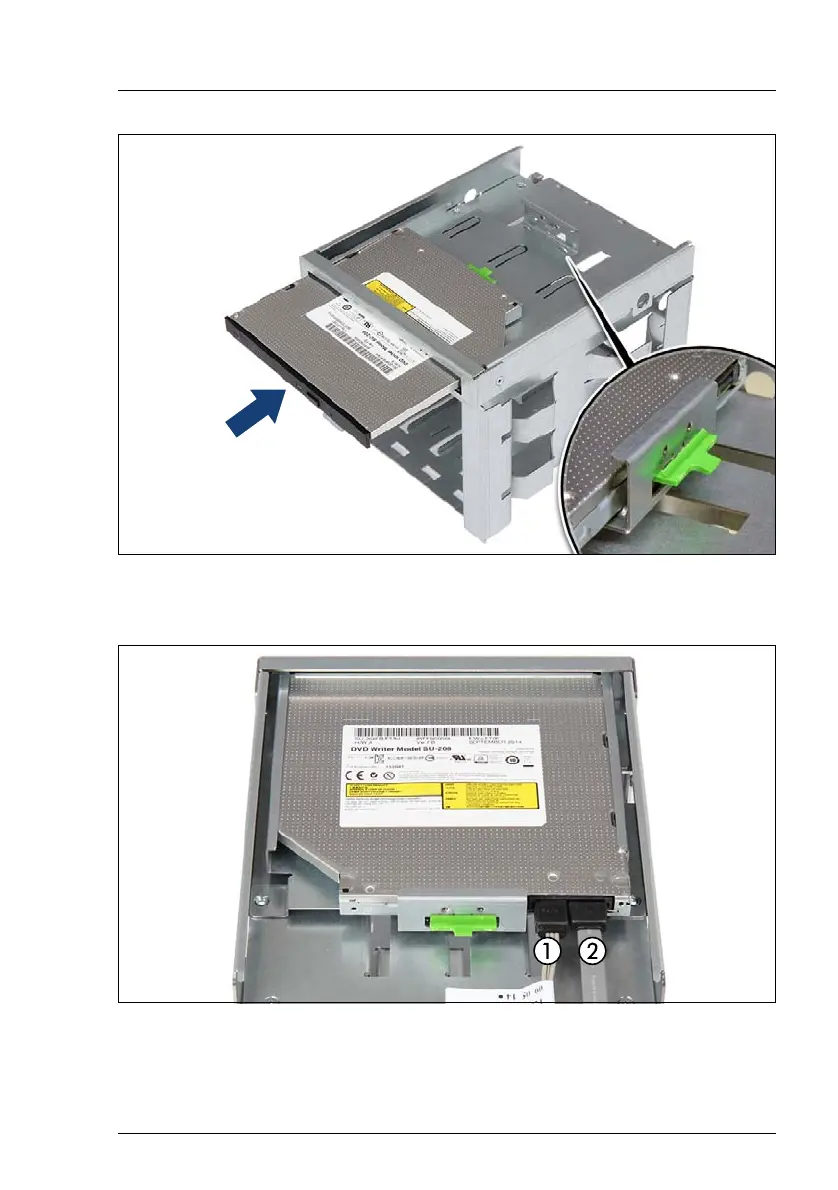

Figure 314: Installing the ultraslim ODD on the HDD extension box
Ê Slide the ultraslim ODD into its bay until it locks into place (see close-up).
Figure 315: Connecting cables to the ultraslim ODD
Ê Connect the power cable C23 (1) and the SATA cable C11 (2) to the ultraslim
ODD.
