Accessible drives

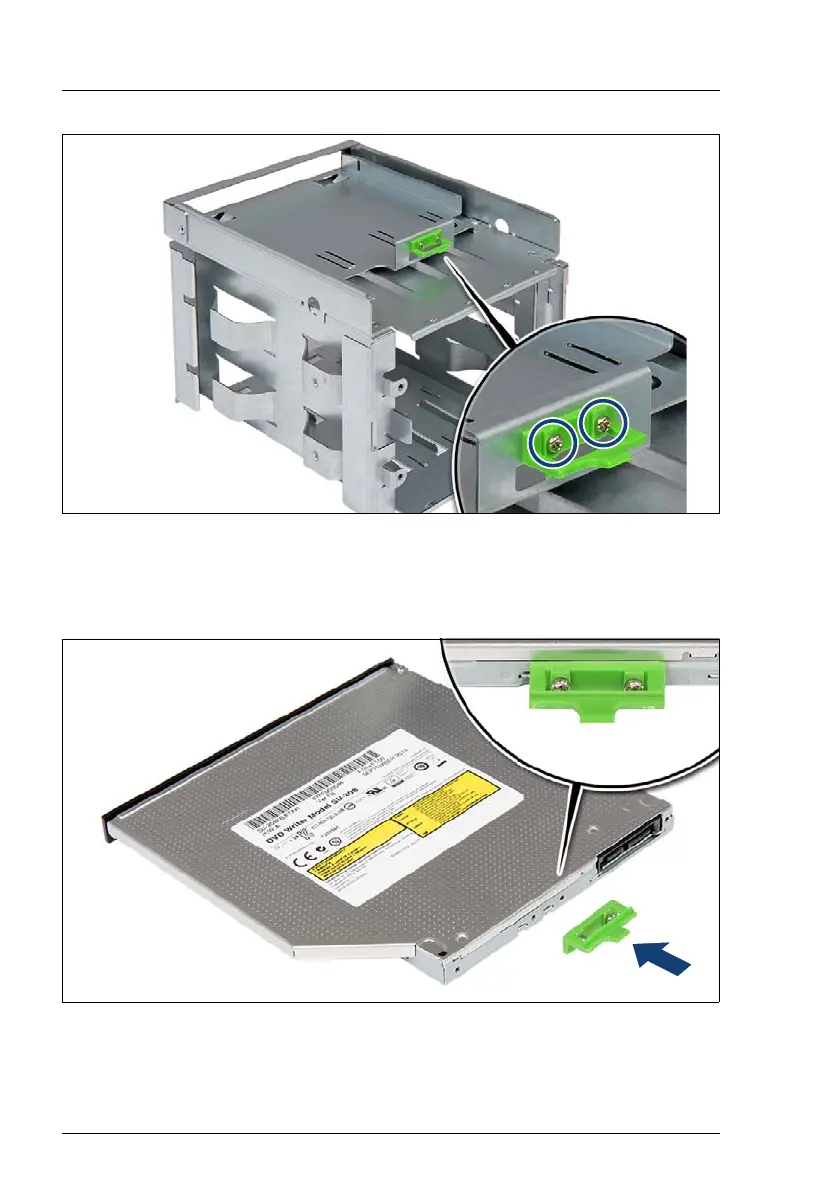

Figure 312: Removing the ultraslim ODD locking latch
Ê Remove the two screws from the locking latch (see circles).
Ê Remove the locking latch.
Figure 313: Installing the locking latch on the ultraslim ODD
Ê Secure the locking latch to the ultraslim ODD with its two original screws
(see close-up).
