TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
187
Hard disk drive (HDD) / solid state drive (SSD)
7.2.13.5 Installing the 2.5-inch HDD bay top cover
I
The 2.5-inch HDD front panel does not need to be removed in order to
replace a 2.5-inch HDD SAS backplane. In the figures, the front panel
has been removed for illustration purposes only.

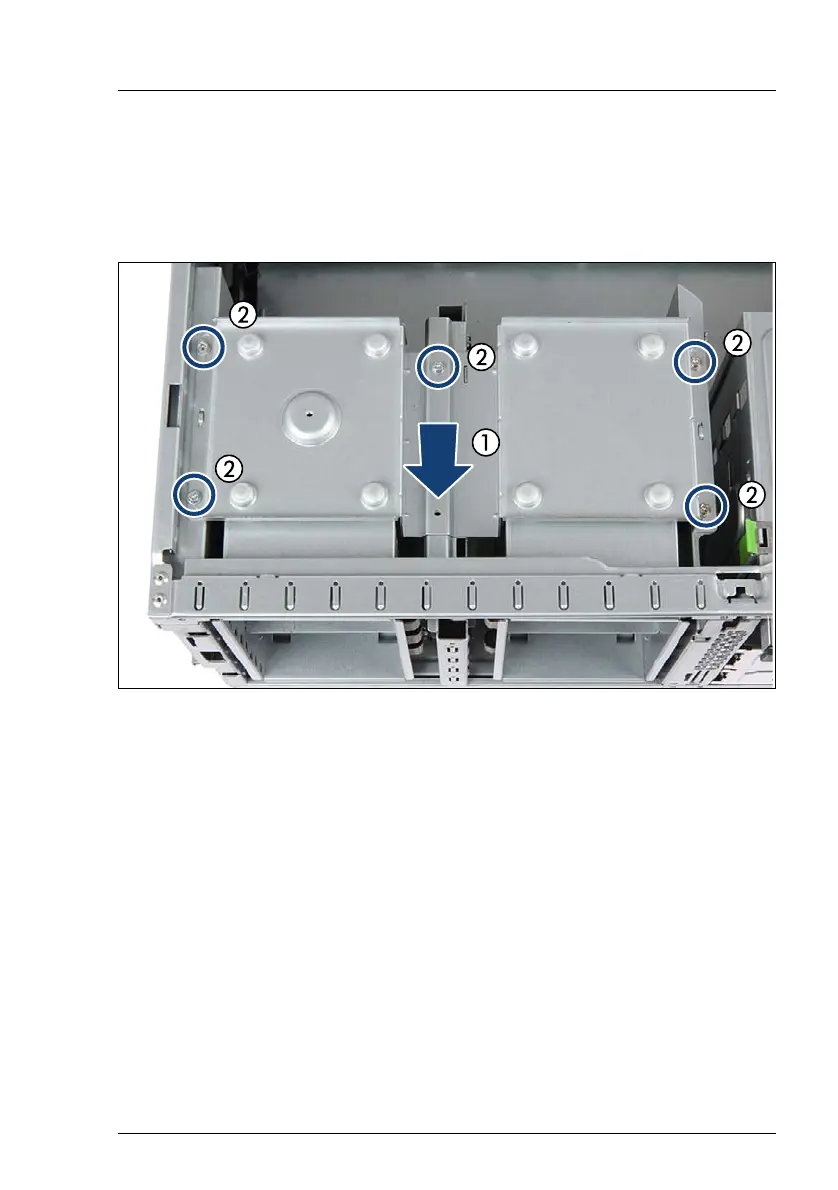

Figure 100: Installing the 2.5-inch HDD bay top cover
Ê
Lower the 2.5-inch HDD bay top cover onto the HDD installation bays (1).
Ê
Ensure that the four rubber bolts on top of the cage properly engage with the
corresponding dents in the HDD bay top cover.
Ê
Secure the HDD bay top cover to the chassis with five M3 x 4.5 mm screws
(2).
