188
Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)

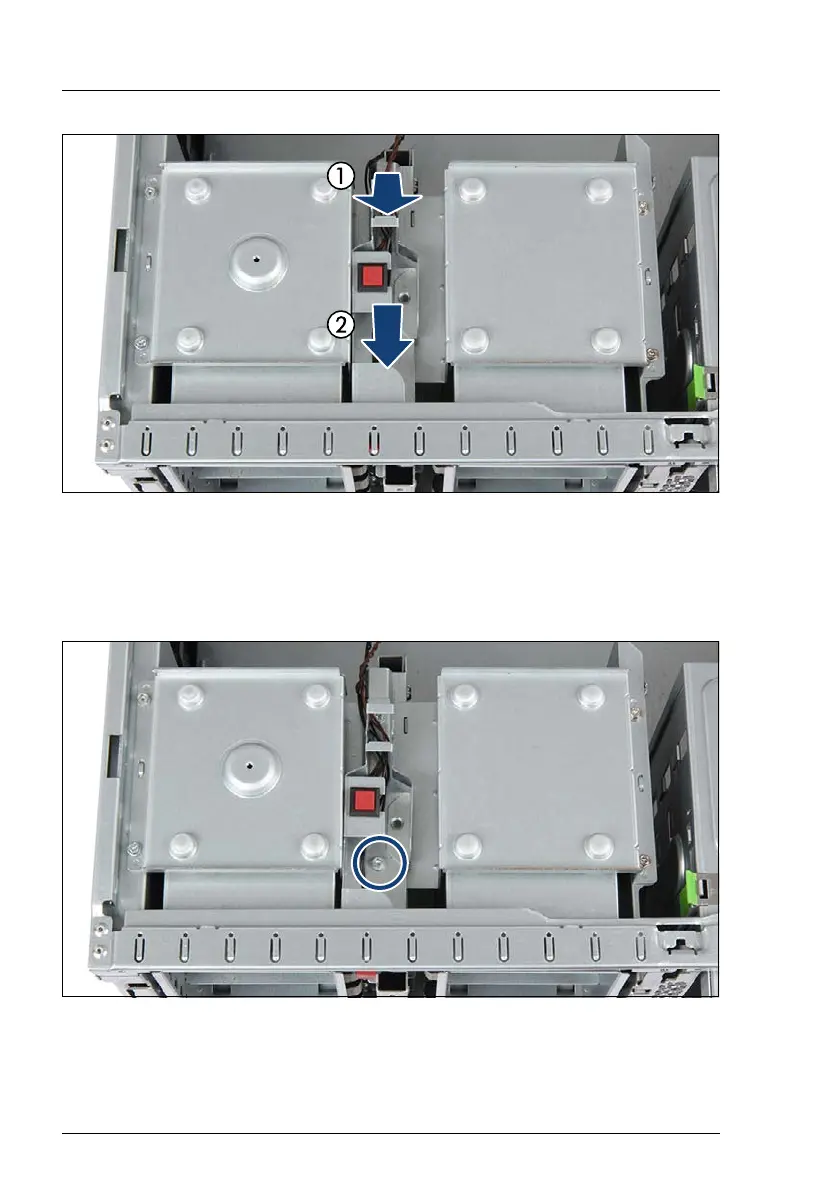

Figure 101: Installing the intrusion switch holder (A)
Ê
Place the intrusion switch holder on the HDD bay top cover as shown (1).
Ê
Slide the intrusion switch holder under the front chassis rim as far as it will
go (2).
Figure 102: Installing the intrusion switch holder (B)
Ê
Secure the intrusion switch holder on the HDD bay top cover with one
M3 x 4.5 mm screw.
