TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
537
16.3.3 Installing the intrusion switch cable
I
The rubber bumper is only necessary in case of rack server
configuration.

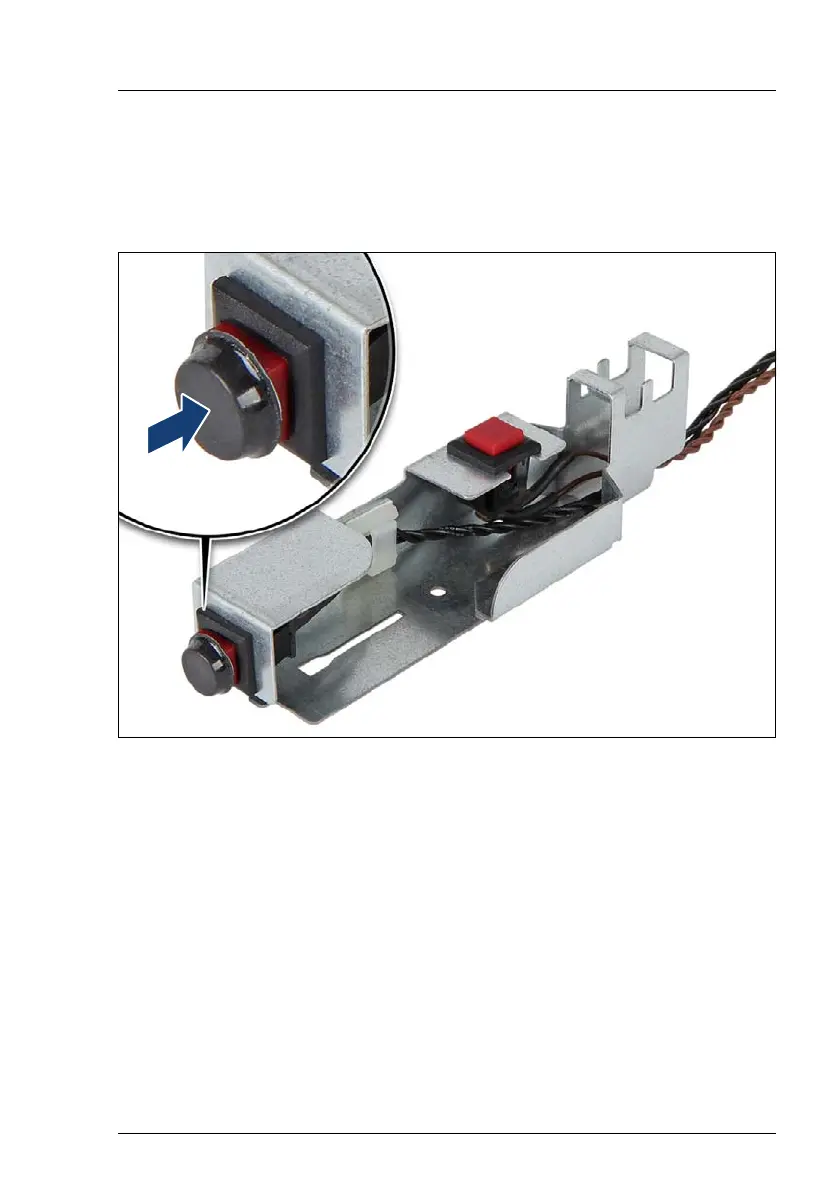

Figure 411: Attaching a rubber bumper to the front intrusion switch
I
In case of rack server configurations, a rubber bumper needs to be
attached to the front intrusion switch as described below. When working
on a tower server, please skip this step.
Ê
Attach a rubber bumper (C26192-Y26-C43) to the front intrusion switch as
shown.
