196 Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)
7.2.14.3 Installing a SAS backplane
Installing the SAS backplane

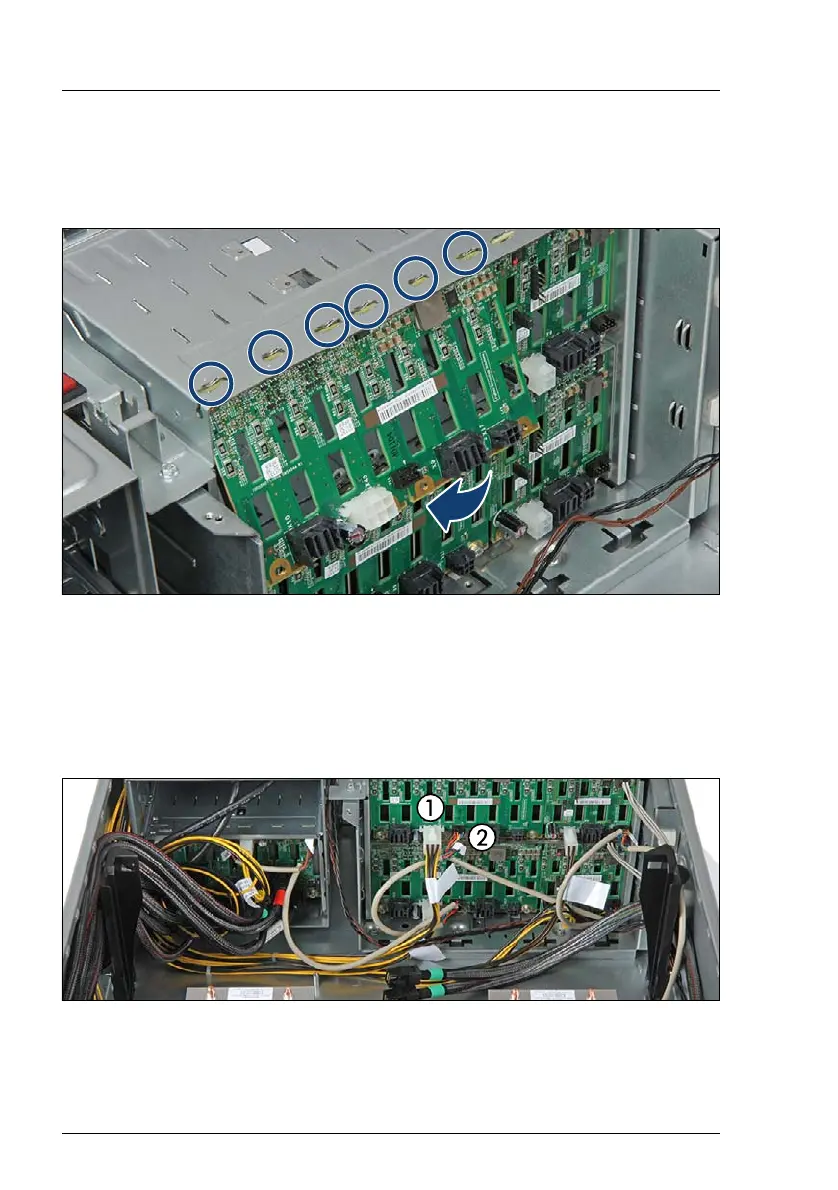

Figure 110: Installing a SAS backplane - example SAS backplane 3
Ê At a slight angle, fit the new SAS backplane into the corresponding recesses
in the HDD cage (see circles).
Ê Fold down the SAS backplane.
Ê Fasten the SAS backplane with four or two screws (see figure 108).
Figure 111: Connecting power and OOB cable - example SAS backplane 3
Ê Connect the power cable to the SAS backplane (1).
Ê If applicable, connect the OOB cable to the SAS backplane (2).
