TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
197
Hard disk drive (HDD) / solid state drive (SSD)
I
Further information see cabling plan "Power cabling: 24x/32x 2.5"
HDDs and SAS 3.0 expander board A3C40176099" on page 517 and
"Options: OOB for six HDD backplanes and PSAS HBA" on
page 530.
I
Connecting SAS cables:
The SAS cables will be connected after installing the SAS expander
holder.
Installing the SAS expander holder

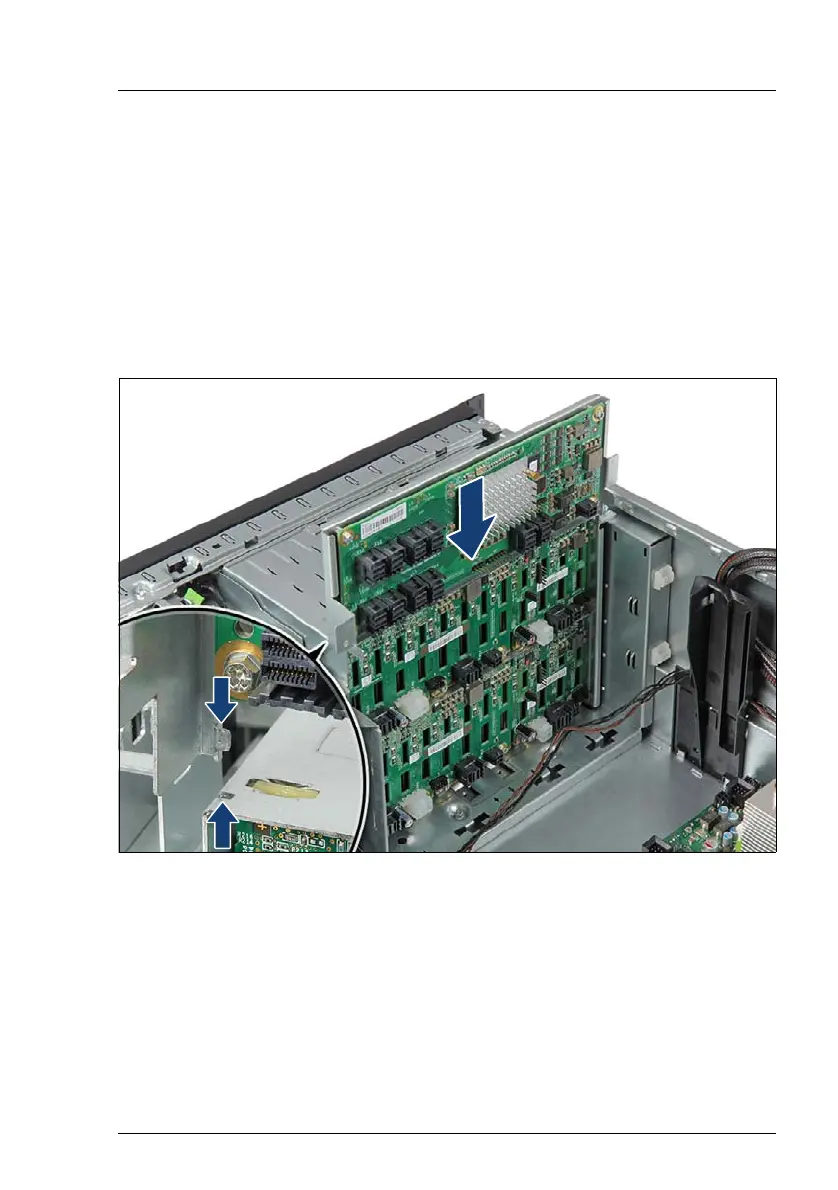

Figure 112: Installing the SAS expander holder (A)
Ê
Align the SAS expander holder at a right angle to the HDD cage as shown.
Ê
Ensure that the SAS expander board is flush with the SAS backplanes
below.
Ê
Lower the SAS expander holder onto the HDD cage, so that the two latches
on each side of the holder engage with the slots on the HDD cage (see
close-up).
