Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Ê
"Getting access to the component" on page 61
I
The front cover only needs to be removed in order to install
accessible drive dummy covers. If the accessible drive is replaced
after being removed, leave the front cover installed.
Ê
"Removing the system air duct" on page 91
Ê
"Removing the system fan holder" on page 93
12.3.2 Removing an accessible drive
Ê
Remove all cables from the accessible drive.
Ê
Disengage the accessible drive locking bar as described in section "Opening
the accessible drive locking bar" on page 100.

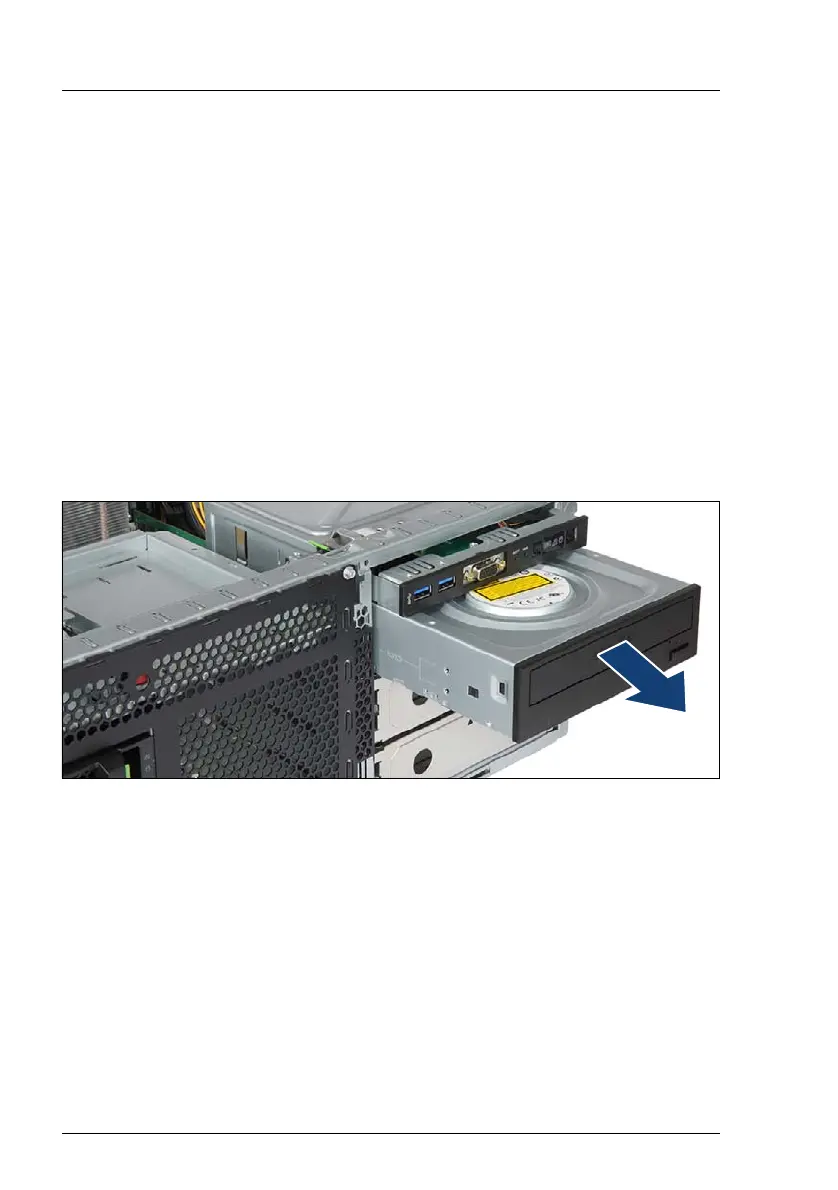

Figure 295: Removing the accessible drive
Ê
Carefully pull the accessible drive out of its installation bay.
Ê
Engage the locking bar as described in section "Closing the accessible drive
locking bar" on page 102.
12.3.3 Installing accessible drive dummy covers
Ê
If applicable, install accessible drive filler covers as described in section
"Accessible drive filler covers" on page 104.
Ê
If applicable, install accessible drive covers as described in section
"Accessible drive covers" on page 106.
