Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Basic hardware procedures
4.5.1.3 Installing the top cover
I
Note for servers with the configuration up to 32x 2.5" HDD/SSD modules:
For this configuration the locking lever is positioned more in the middle.
It is not possible to use this top cover in other configurations.

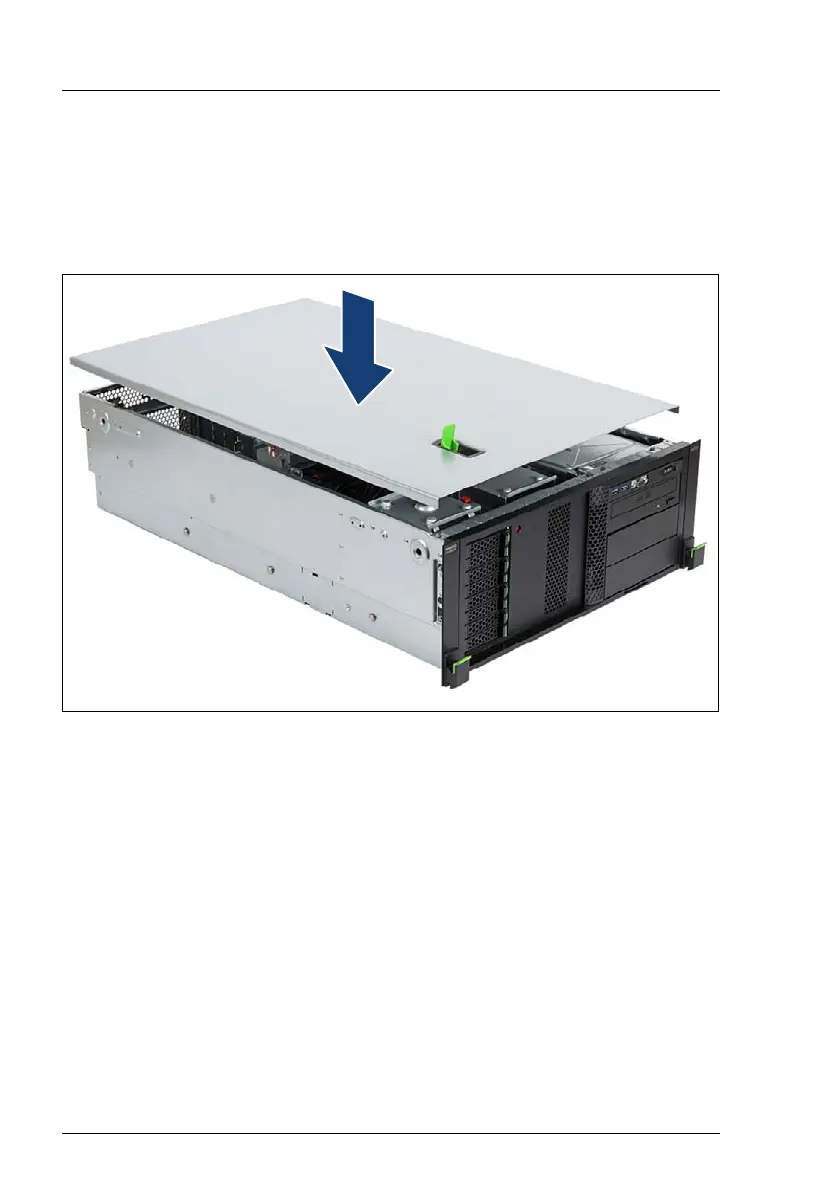

Figure 24: Installing the top cover (rack server) (A)
Ê
Open the locking lever on the top cover.
Ê
Lower the top cover onto the chassis, recessed by 2 cm.
