TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
431

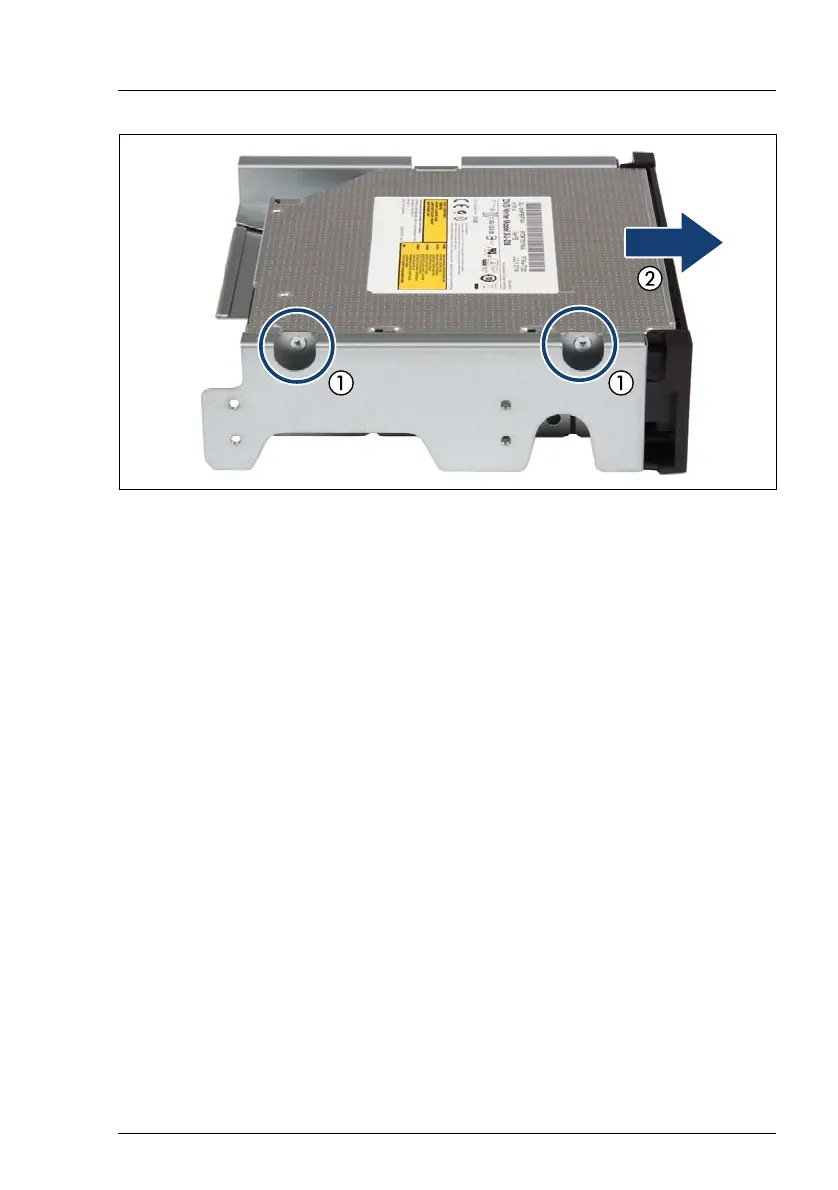

Figure 321: Removing the ultraslim ODD from the ultraslim ODD adapter
Ê
Remove the two screws (1).
Ê
Remove the ultraslim ODD (2).
Ê
If the removed ultraslim ODD is not to be replaced by a new drive:
Ê
Insert the ultraslim ODD dummy cover (see figure 318).
12.7.2.4 Installing the ultraslim ODD adapter
Ê
Install the ultraslim ODD adapter as described in section "Installing an
accessible drive" on page 398.
12.7.2.5 Concluding steps
Ê
"Installing the system fan holder" on page 94
Ê
"Installing the system air duct" on page 92
Ê
"Reassembling" on page 74
Ê
"Connecting the power cord" on page 87
Ê
"Switching on the server" on page 90
