TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
299
Expansion cards and backup units

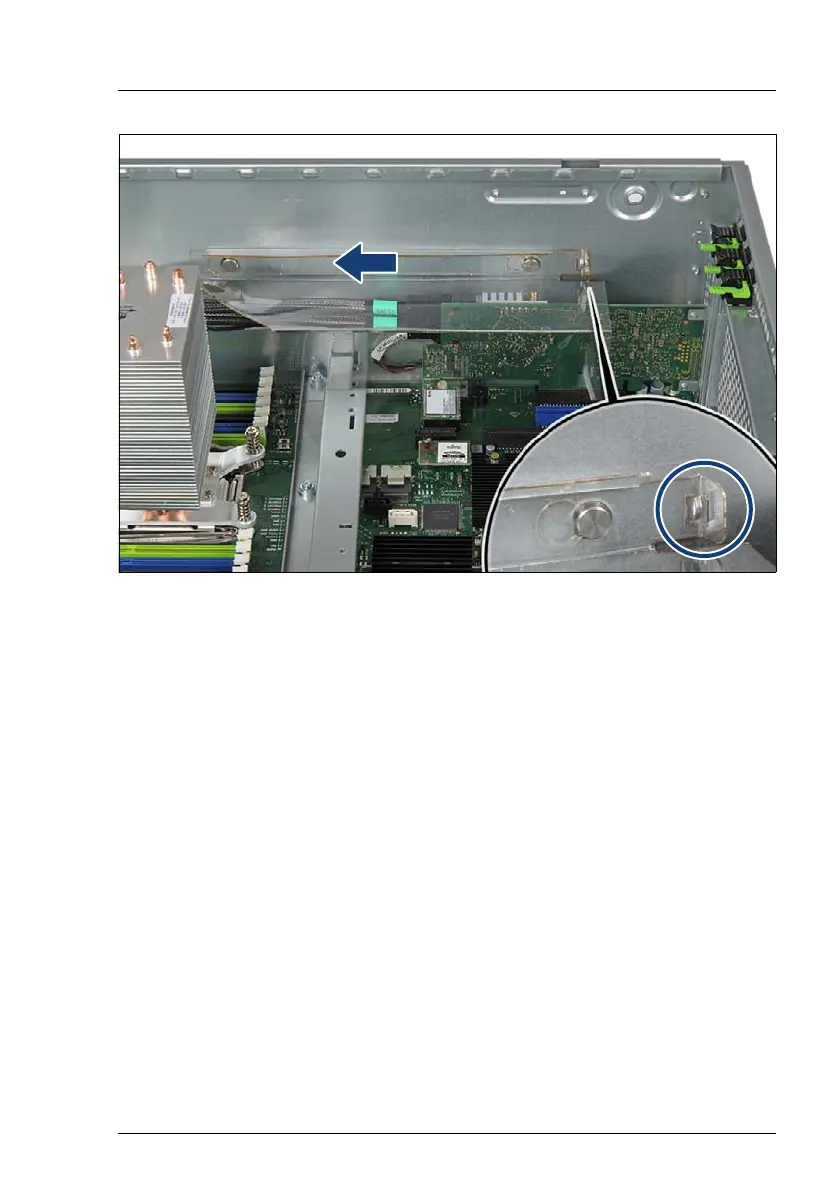

Figure 208: Installing the air duct - PCI slot 1 (B)
Ê
Only for PCI slot 1: slide the air duct as far as it will go in direction of the
arrow. The shoulder screw caps on the chassis floor will lock in the narrow
ends of the keyhole slots on the air duct.
Ensure that the locking handle on the air duct properly snaps in place (see
circle in close-up).
Ê
If applicable, connect internal cables to the expansion card.
I
For a complete cabling overview, please refer to section "Cabling
plans" on page 512.
Ê
If applicable, connect an FBU to the expansion card as described in section
"Installing an FBU" on page 319.
9.3.1.4 Concluding steps
Ê
"Reassembling" on page 74
Ê
Reconnect all external cables to the replaced expansion card.
Ê
"Connecting the power cord" on page 87
Ê
"Updating RAID controller firmware" on page 122
