298
Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Expansion cards and backup units

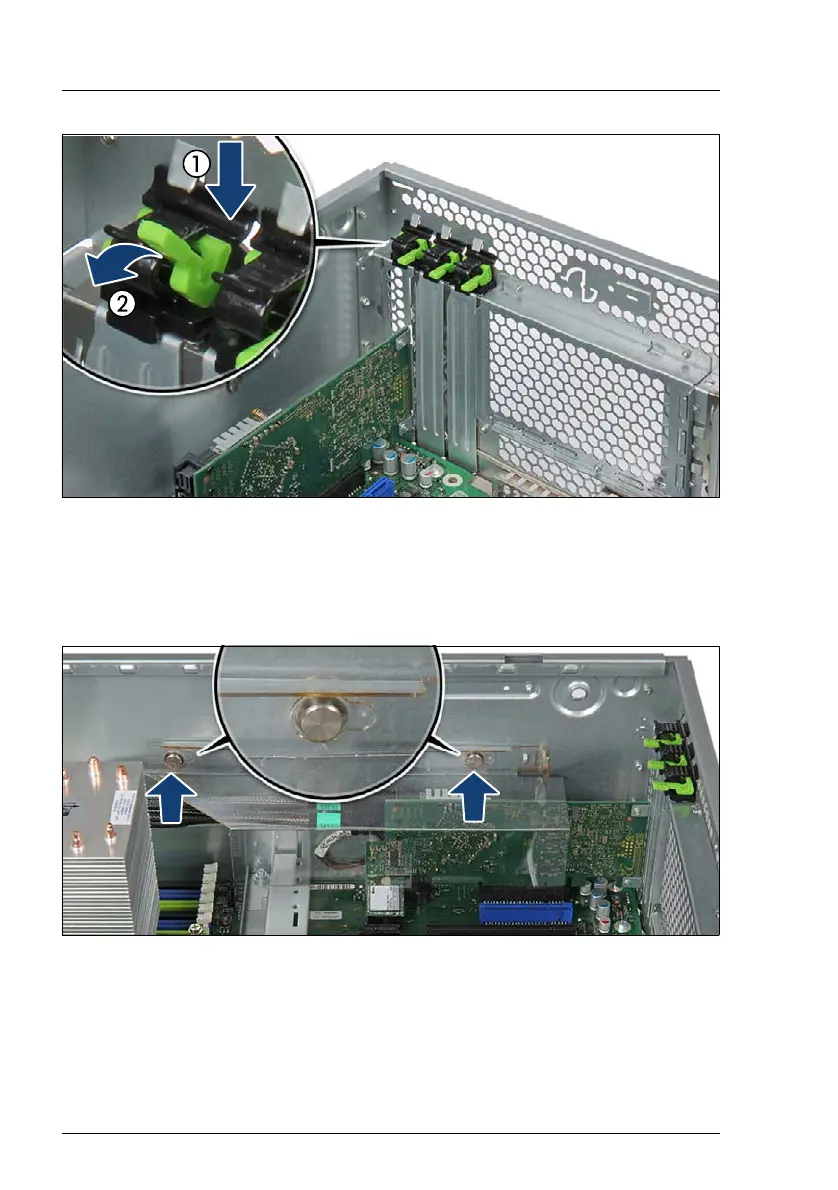

Figure 206: Installing the expansion card - example PCI slot 1 (B)
Ê
Clip on the PCI slot cover clamp (1).
Ê
Fold down the locking handle on the PCI slot cover clamp until it locks in
place (2).
Figure 207: Installing the air duct - PCI slot 1 (A)
Ê
Only for PCI slot 1: insert the air duct into the chassis so that the two
shoulder screw caps on the chassis floor rest in the wide ends of the keyhole
slots on the air duct.
