TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
81
Basic hardware procedures
4.5.2 Tower server (TX2560 M2)
4.5.2.1 Installing the front cover

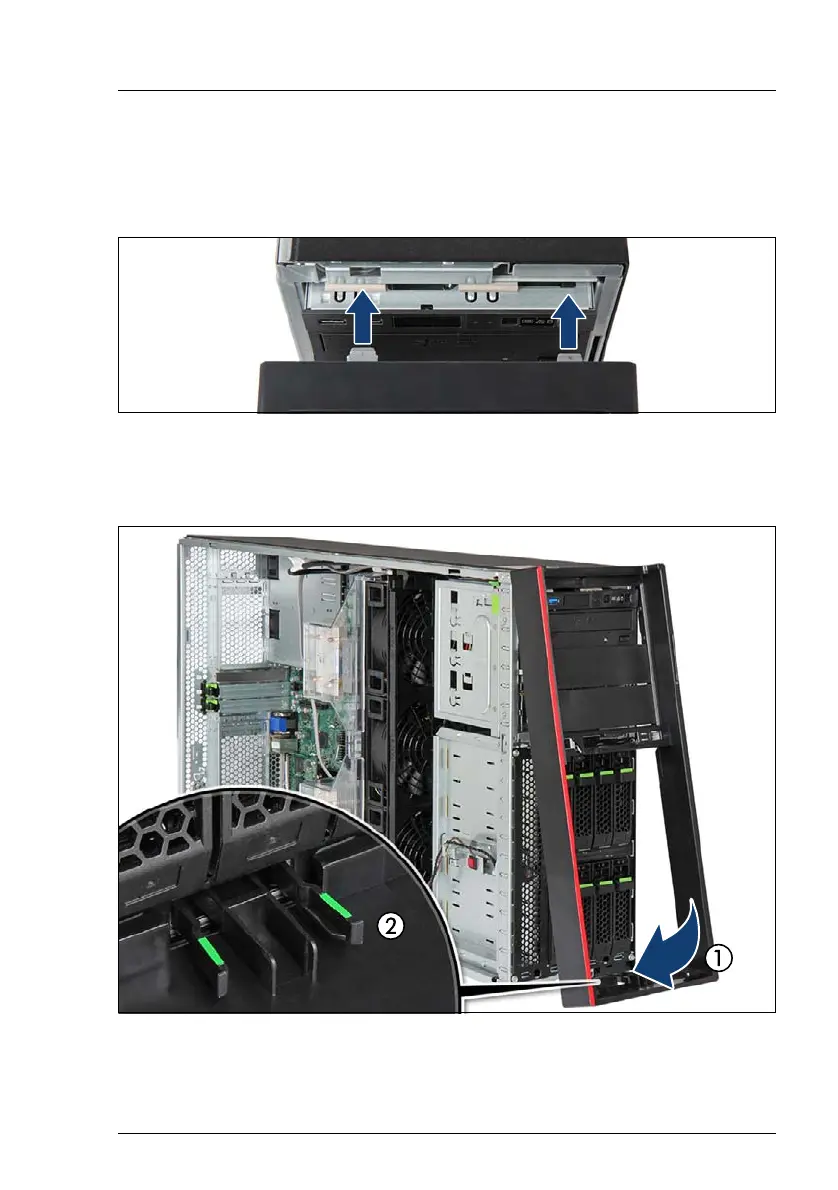

Figure 28: Installing the front cover (tower server) (A)
Ê
Hook the two tabs on the upper end of the front cover into the notches in the
chassis.
Figure 29: Installing the front cover (tower server) (B)
Ê
Fold down the front cover (1) until the locking clip on the bottom edge of the
front cover engage (2).
