TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
303
Expansion cards and backup units

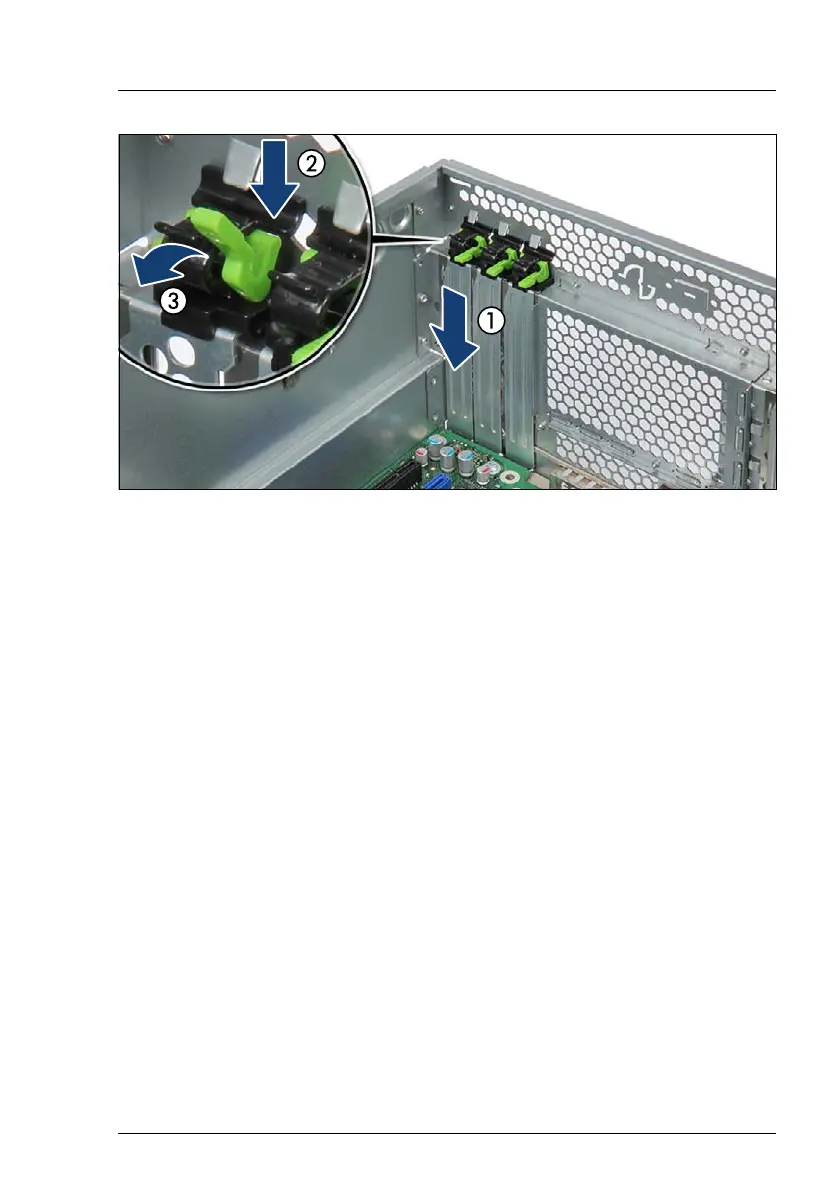

Figure 212: Installing the slot cover - example PCI slot 1
Ê
Insert a PCI slot cover into the unused PCI slot opening (1).
Ê
Clip on the PCI slot cover clamp (2).
Ê
Fold down the locking handle on the PCI slot cover clamp until it locks in
place (3).
9.3.2.4 Concluding steps
Ê
"Reassembling" on page 74
Ê
"Connecting the power cord" on page 87
Ê
"Resuming BitLocker functionality" on page 136
