Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)
7.3.6 Mixed configuration of 3.5-inch HDD modules and
2.5-inch HDD/SSD modules (three backplanes)
I
This configuration is not available for the Japanese market.
Mounting order

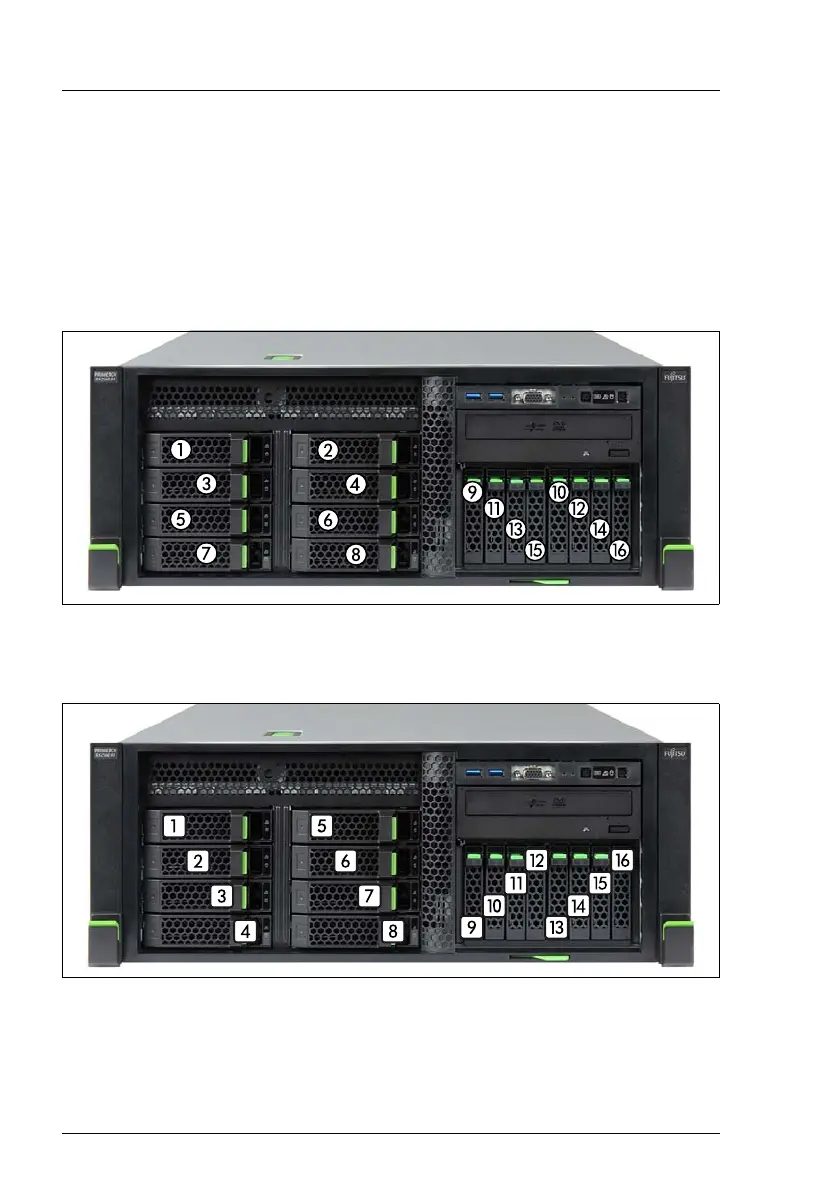

Figure 126: Mounting order for up to 8x 3.5-inch HDDs and up to 8x 2.5-inch HDDs/SSDs
HDD/SSD naming scheme
Figure 127: Naming scheme for up to 8x 3.5-inch HDDs and up to 8x 2.5-inch HDDs/SSDs
