Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)
7.4.5.6 Cabling the 4x 3.5-inch HDD extension box

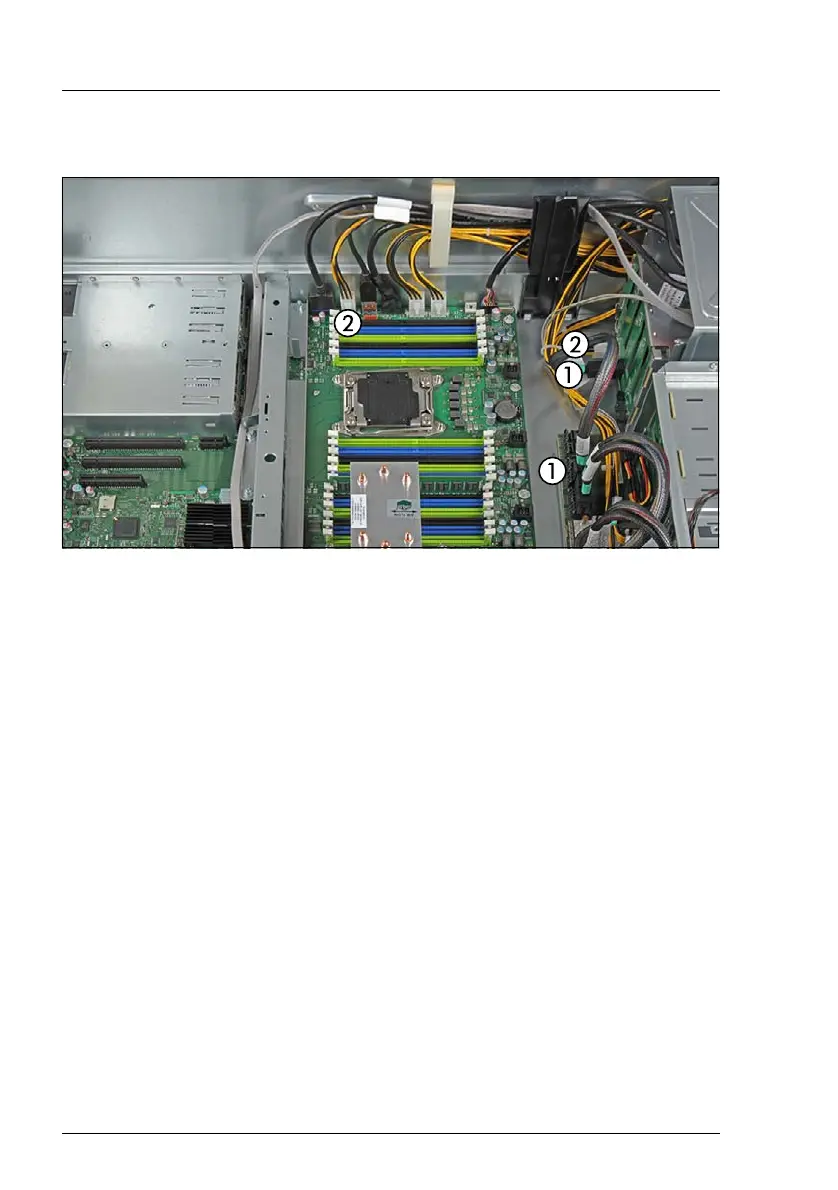

Figure 162: Connecting cables to the 4x 3.5-inch HDD extension box
Ê
Connect the SAS cable C11 from backplane connector X9 to the expander
board connector X12 (1).
Ê
Connect the power cable C6 from backplane connector X40 to the system
board connector PWR 12V3 (2).
Ê
If applicable, connect the power cable and the SATA cable of the ultraslim
ODD to the system board (see section "Installing the ultraslim ODD" on
page 418).
Ê
If applicable, connect the OOB cable (see cabling plan in figure 402 on
page 530).
I
For a complete cabling overview, please refer to section "Cabling plans"
on page 512.
7.4.5.7 Installing HDD modules into the 4x 3.5-inch HDD extension box
Ê
Install HDD modules or HDD dummy modules into the additional HDD bays
as described in sections "Installing a 3.5-inch HDD module" on page 219
and "Installing a 3.5-inch HDD dummy module" on page 221.
I
For detailed information on HDD mounting order, refer to section "3.5-
inch HDD configurations" on page 206.
