474
Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
System board and components

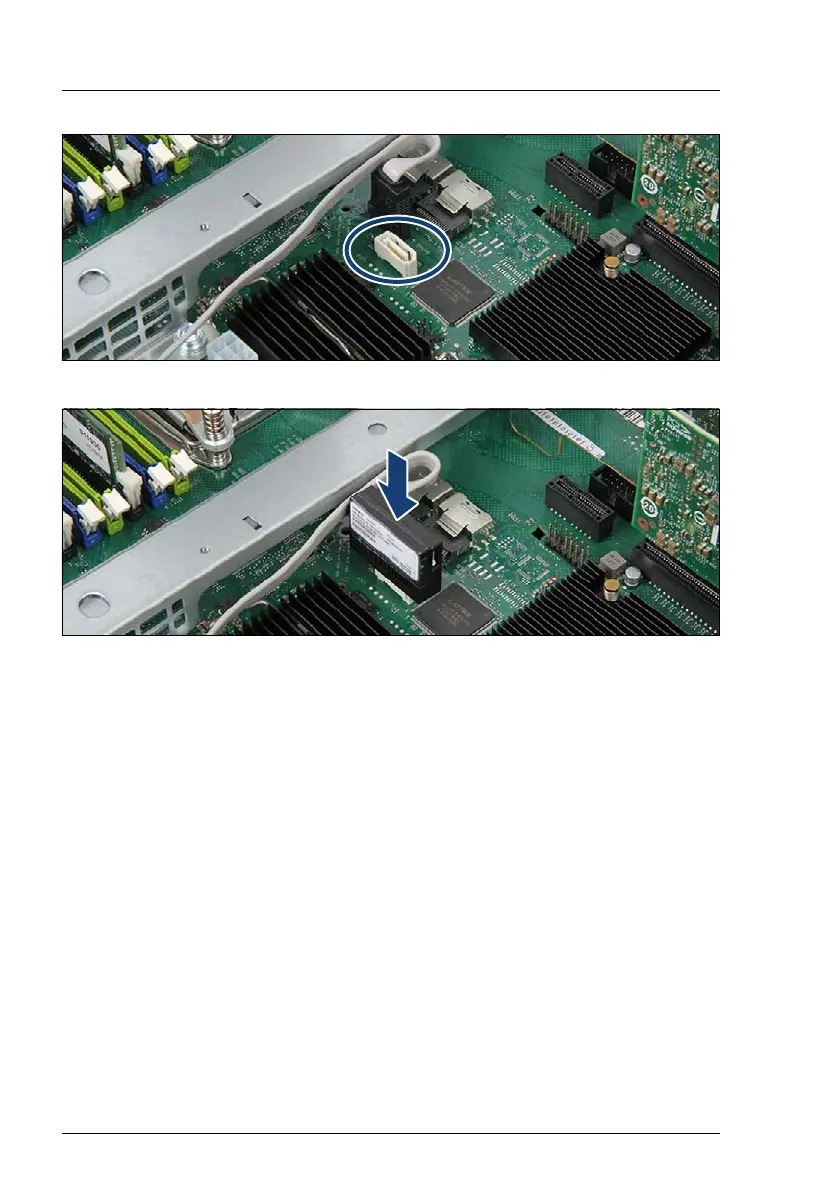

Figure 355: Position SATA DOM
Figure 356: Installing the SATA DOM
Ê
Connect the SATA DOM to the connector "SATA6 DOM" on the system
board.
14.5.1.3 Concluding steps
Ê
If applicable, install the riser module 1 as described in section "Installing a
riser module" on page 95.
I
Please note the ODD cable when you insert the riser module (see
figure 294 on page 400 for the ODD cable routing).
Ê
"Reassembling" on page 74
Ê
"Connecting the power cord" on page 87
Ê
"Switching on the server" on page 90
