Upgrade and Maintenance Manual
TX2560
M2
/
RX
2560
M
2
Accessible drives

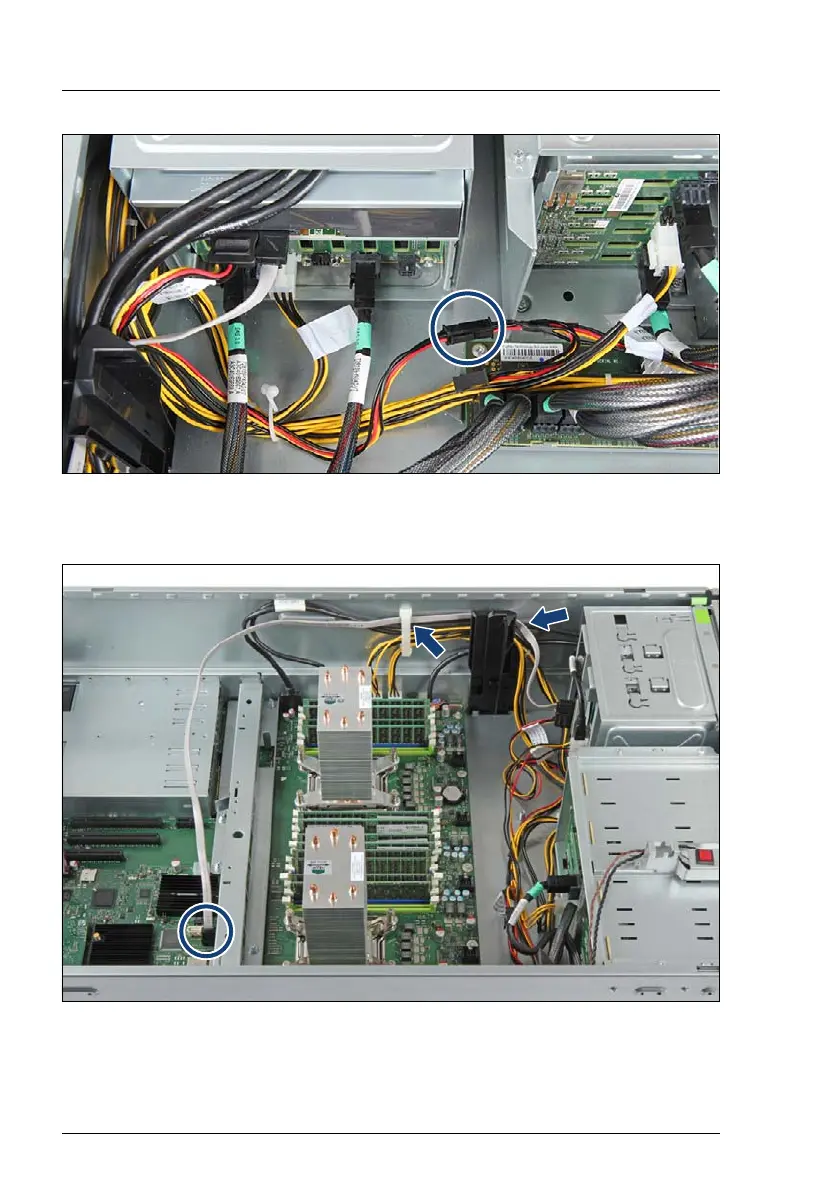

Figure 293: Example connecting ODD power cable
Ê
Connect the power cable C25 to a free connector of the power cable C8.
Figure 294: Example routing ODD SA
T
A cable
Ê
Connect the SA
T
A cable C3 to the system board connector SA
T
A 5 (s
ee
section
"Cabling plans" on page
512
).
399
401
