TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
399

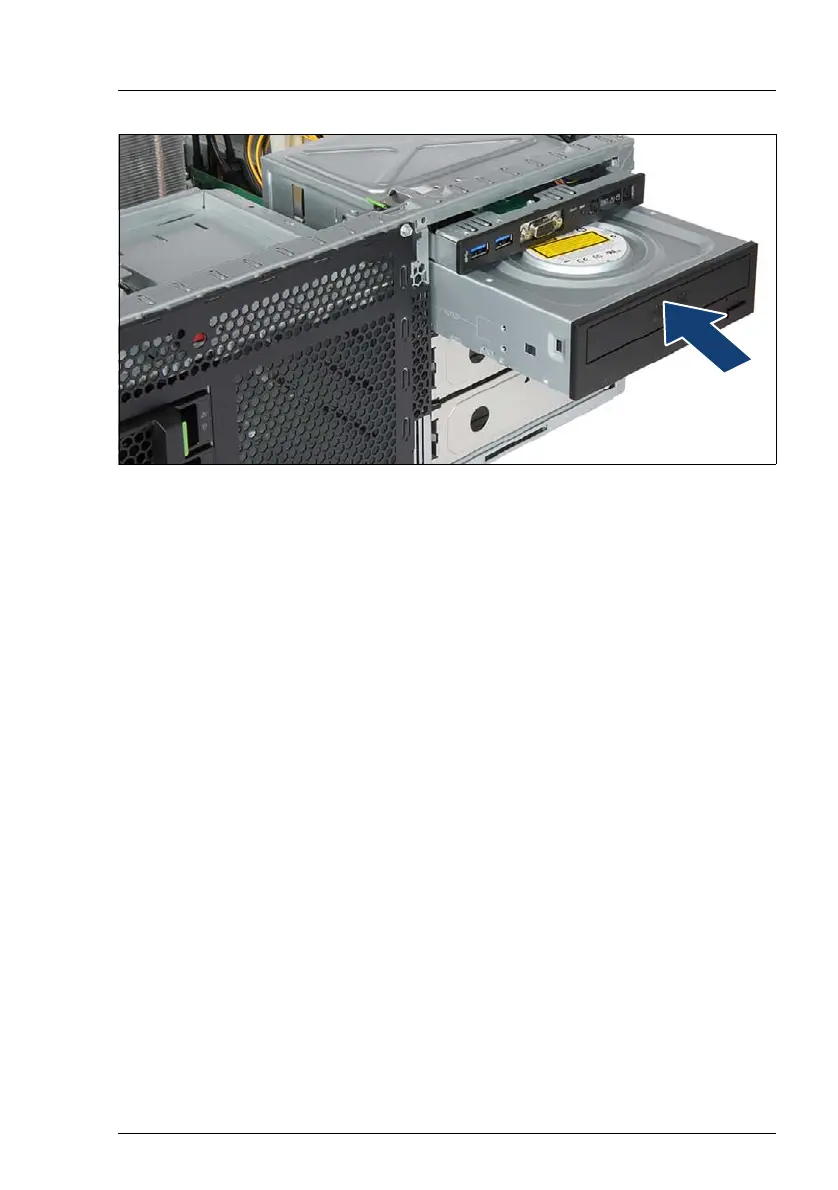

Figure 292: Inserting the accessible drive
Ê
Insert the accessible drive into its installation bay and carefully push in until
it lines up with the front panel.
V CAUTION!
For installing a LTO drive: ensure that the power cables routed behind
the accessible drive cage are not trapped when pushing the LTO
drive in its bay.
Ê
Engage the locking bar as described in section "Closing the accessible drive
locking bar" on page 102.
