14.3.2.2 Removing the UFM

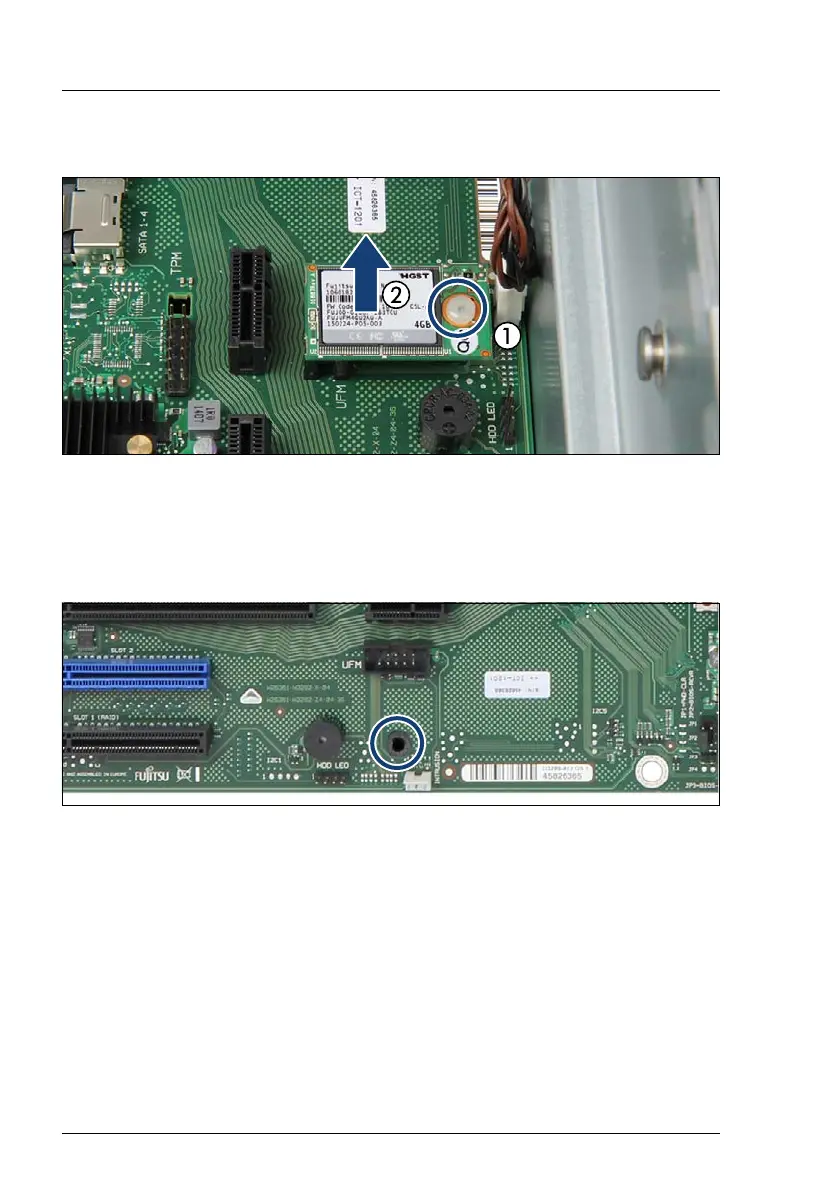

Figure 341: Removing the UFM
Ê
Remove the nylon screw of the UFM (1).
Ê
Disconnect and remove the UFM (2).
The UFM spacer remains on the system board.
Figure 342: Remaining UFM spacer on system board
V CAUTION!
UFM contains customer information (e.g. IP address, License etc.). After
removing the UFM, you must pass the UFM to the customer.
14.3.2.3 Concluding steps
Ê
If applicable, install the expansion card in slot 1 as described in section
"Installing expansion cards in standard slots" on page 295.
Ê
"Reassembling" on page 74
