Front panel and external connectors
Connecting front panel cables to the system board

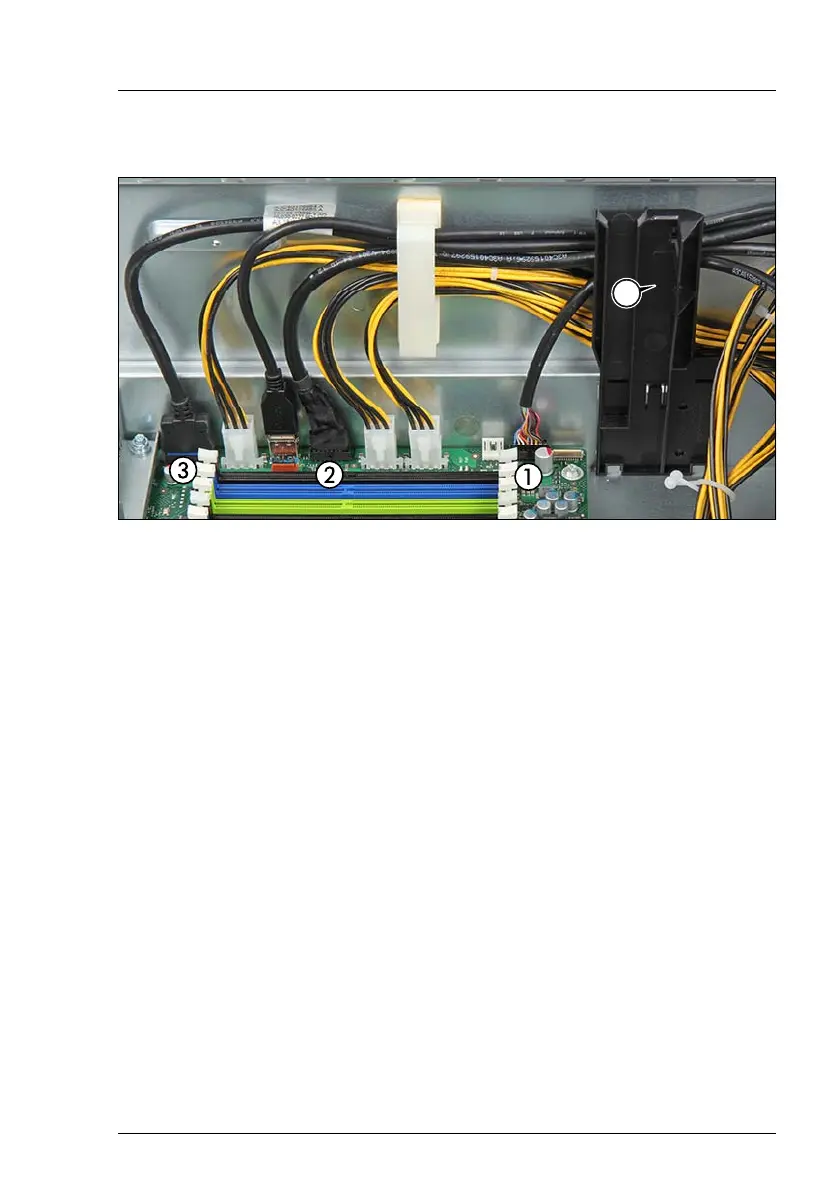

Figure 328: Connecting front panel cables to the system board
Ê Run the front panel cables through the cable guide (A).
Ê Connect the front panel cable to the system board (1).
Ê If applicable, connect the front VGA cable to the system board (2).
Ê Connect the front USB cable to the system board (3).
13.1.6 Concluding steps
Ê "Installing the system fan holder" on page 94
Ê "Installing the system air duct" on page 92
Ê "Reassembling" on page 74
Ê "Connecting the power cord" on page 87
Ê "Switching on the server" on page 90
Ê "Verifying system information backup / restore" on page 121
Ê Store your server’s system information on the Chassis ID EPROM
integrated into the front panel board: "Using the Chassis ID Prom Tool" on
page 139
