Processor (CPU)
11.2.3 Installing a CPU
I This description applies to the following procedures:
– Installing the second CPU in a 1 CPU configuration
– Transferring a CPU after replacing the system board

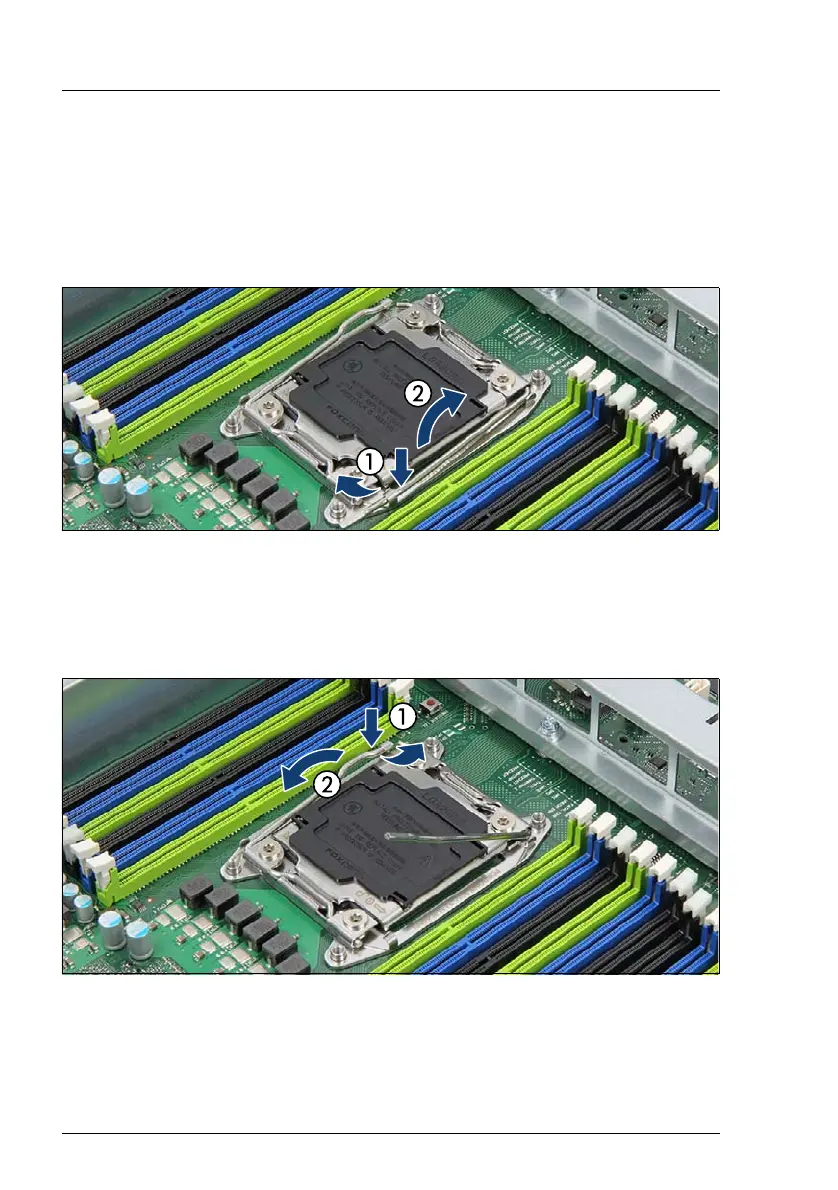

Figure 263: Opening socket release lever (marked Open 1st)
Ê Unlatch the socket release lever marked Open 1st by pushing it down and
towards the socket (1).
Ê The socket release lever will slightly lift up (2).
Figure 264: Opening socket release lever (marked Close 1st)
Ê Unlatch the socket release lever marked Close 1st by pushing it down and
towards the socket (1).
Ê The socket release lever will slightly lift up (2).
