TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
371

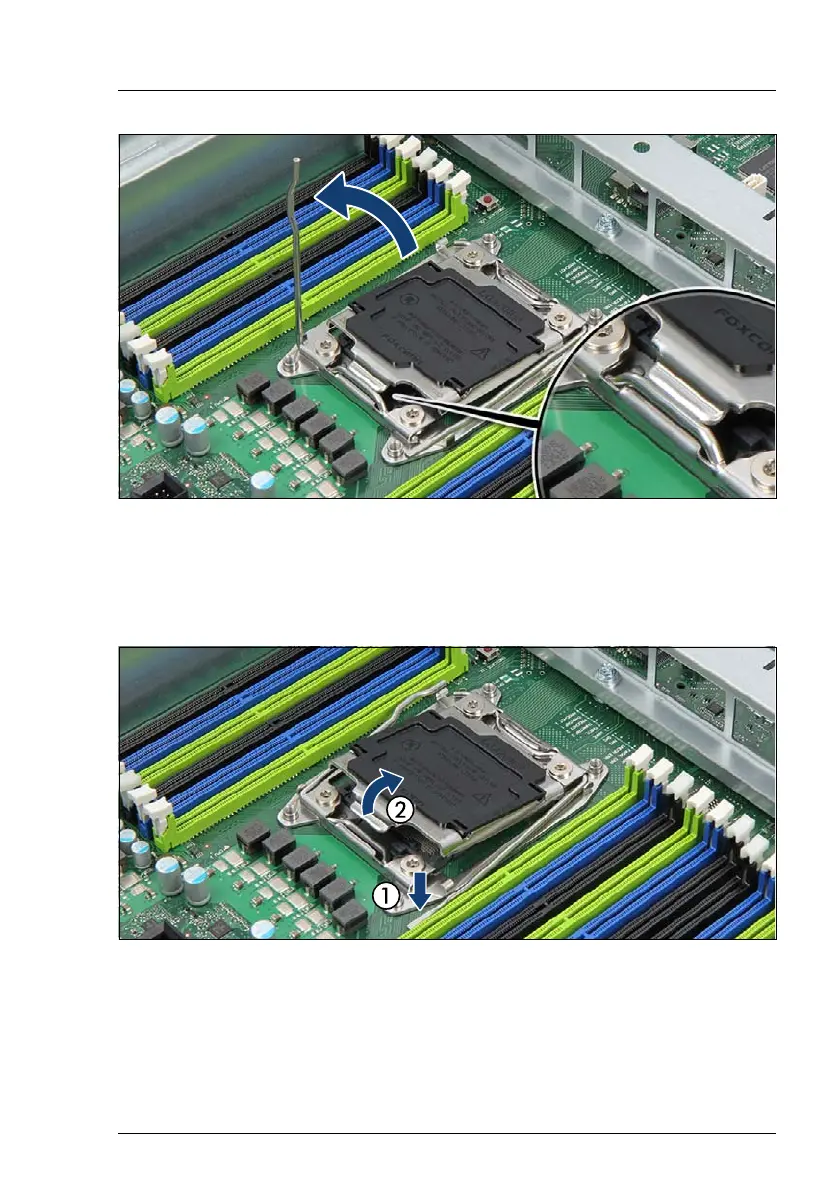

Figure 265: Releasing the load plate
Ê
Fully fold back the socket release lever marked
Close 1st
in order to release
the load plate (see close-up).
Ê
Return the socket release lever to its original position.
Figure 266: Opening the load plate (A)
Ê
Push down on the socket release lever marked
Open 1st
(1) to lift the load
plate away from the socket (2).
