Fujitsu PRIMERGY TX2560 M2

164 Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)
7.2.6 Configuration with up to 32 HDD/SSD modules
(five backplanes)
Mounting order

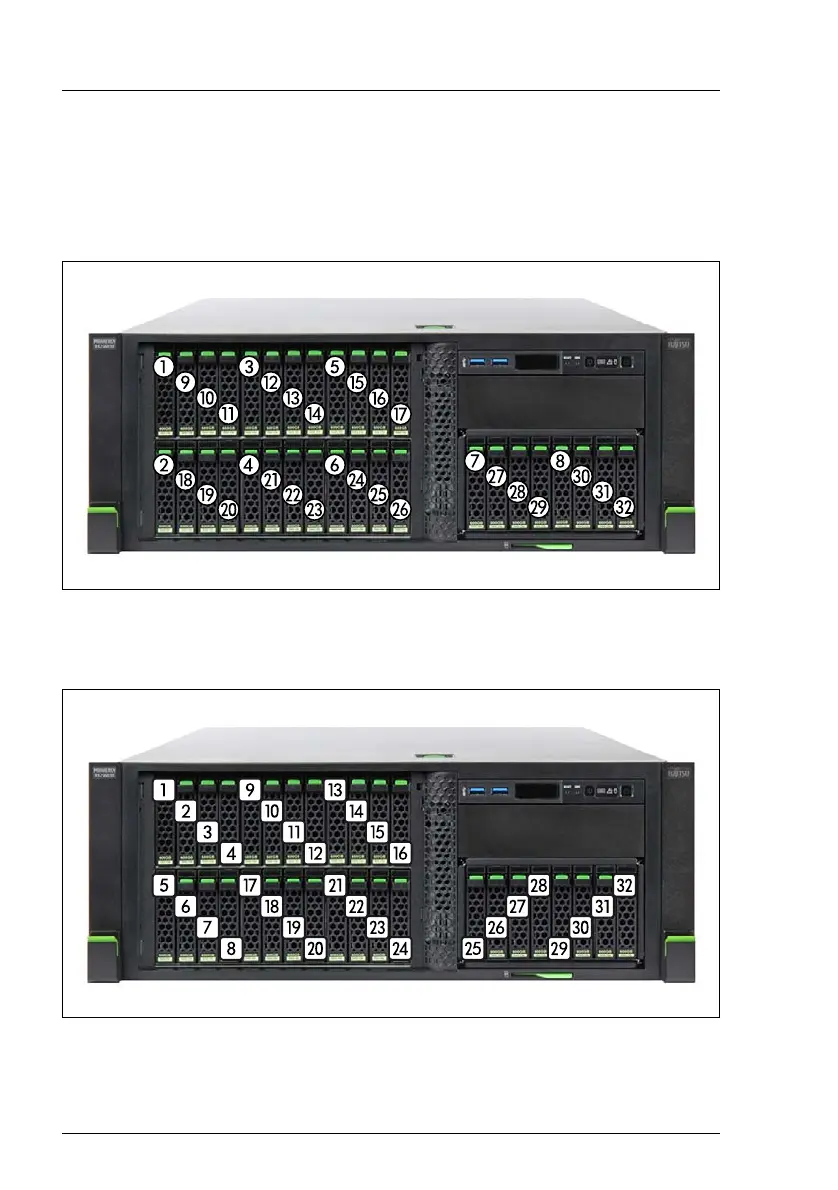

Figure 79: Mounting order for up to 32x 2.5-inch HDDs/ SSDs
HDD/SSD naming scheme
Figure 80: Naming scheme for up to 32x 2.5-inch HDDs/SSDs
